General Information |
|
Summary |

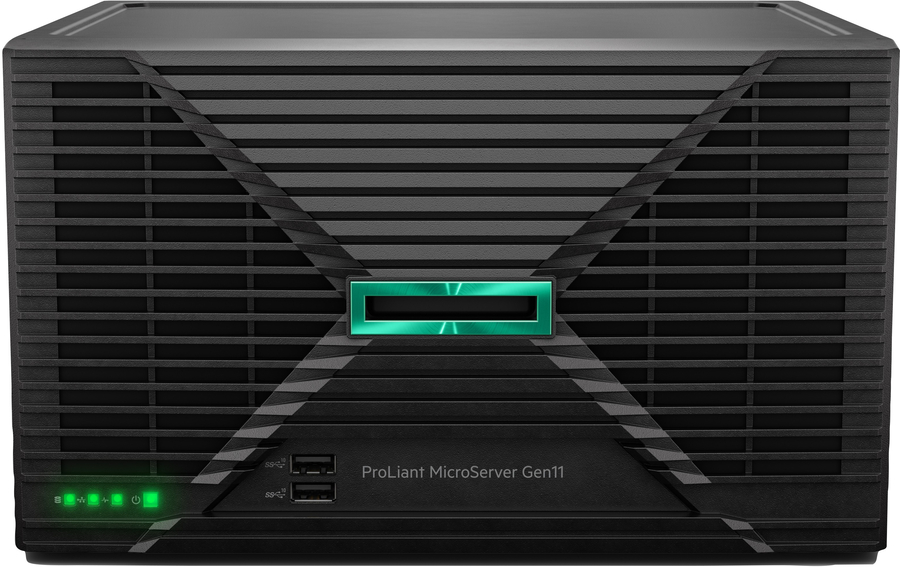

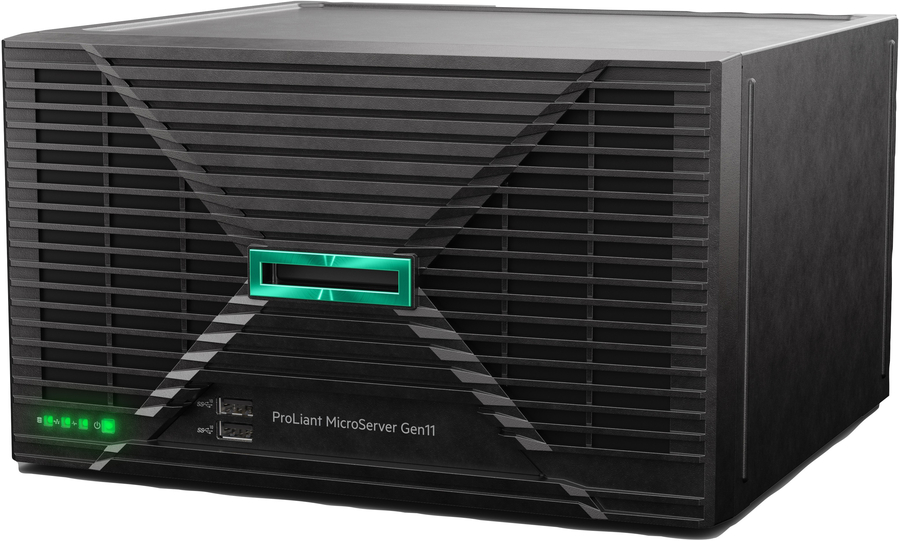

Are you looking for a budget-friendly server that can fit almost anywhere? The HPE ProLiant MicroServer Gen11 delivers an affordable, compact yet powerful entry server that you can customize for on-premises or for hybrid cloud possibilities while still meeting the enterprise-class performance, security, reliability, and expandability standards of the rest of the HPE ProLiant enterprise class server portfolio. With a mini tower design, place it flat or vertically or wall mounted, depending on customer environment. The latest Intel Xeon 6300 Series, Intel Xeon E and Intel Pentium Processors supported to deliver compute performance, increased memory capacity, as well as security and remote management into the server with HPE iLO silicon root of trust. The affordable starting price makes the HPE ProLiant MicroServer Gen11 a good value that has the networking and performance capacity to grow with your business as your needs and budget change over time.
What is new supporting point:
Fast OS Boot with the M.2 slot (optional slot available on the optional dedicated HPE iLO/M.2/serial port kit).
Optional Serial Port (via the dedicated HPE iLO/M.2/serial port option kit).
Support for HPE iLO 6. HPE iLO remote server management support is now standard without the need of the additional module or activation key.
The latest Intel Xeon 6300 Series, Intel Xeon E-2400 and Intel Pentium Gold Processors.
Four 4400 MT/s HPE DDR5 UDIMMs, offering 16, 32 GB with up to 128 GB memory capacity support.
Two PCIe expansion slots with the new PCIe 5.0 support. |
|
Processor |
|
Processor family |
Intel® Xeon® |
|
Processor manufacturer |
Intel |
|
Processor model |
E-2414 |
|
Processor frequency |
2.6 GHz |
|
Processor cores |
4 |
|
Processor cache |
12 MB |
|
Motherboard chipset |
Intel C262 |
|
Number of processors installed |
1 |
|
Processor cache type |
Smart Cache |
|
Memory |
|
Internal memory |
16 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Maximum internal memory |
128 GB |
|
Memory slots |
4x DIMM |
|
ECC |
Yes |
|
Memory clock speed |
4800 MHz |
|
Memory layout (slots x size) |
1 x 16 GB |
|
Storage |
|
Maximum storage capacity |
16 TB |
|
Total storage capacity |
0 GB |
|
RAID support |
Yes |
|
Optical drive type |
No |
|
HDD interface |
SATA |
|
Number of HDDs supported |
4 |
|
Supported HDD sizes |
3.5" |
|
SSD interface |
PCI Express 4.0 |
|
RAID levels |
0, 1, 5, 10 |
|
Supported RAID controllers |
Embedded Intel VROC SATA for HPE ProLiant Gen11 |
|
Hot-Plug support |
No |
|
Network |
|
LAN controller |
Broadcom BCM5719 |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
DisplayPorts quantity |
1 |
|
Expansion slots |
2 PCIe, for detailed descriptions reference the QuickSpecs |
|
Design |
|
Chassis type |
Ultra Micro Tower |
|
Redundant fans support |
No |
|
Performance |
|
Remote administration |
iLO 6 ASIC |
|
Management platform |
HPE iLO Enablement Kit optional |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Software |
|
Operating system installed |
No |
|
Compatible operating systems |
Microsoft Windows Server 2022: Essentials, Standard, Datacenter
Red Hat Enterprise Linux (RHEL): 8.8, 9.2 (64 bit, includes KVM)
VMware vSphere: 8.0 U2
Canonical Ubuntu 20.04 & 22.04 |
|
Power |
|
Redundant power supply (RPS) support |
No |
|
Power supply |
180 W |
|
Power supply type |
1x 180W External Power Adapter, Non-Redundant Power Supply |
|
Number of main power supplies |
1 |
|
Power supply input voltage |
100 - 240 V |
|
Power supply input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
154 mm |
|
Depth |
261 mm |
|
Height |
249 mm |
|
Weight |
7.97 kg |
|
Other features |
|
Security features |
Trusted Platform Module (TPM) 2.0 |
|
Number of processors supported |
1 |
|
Standard fans |
1x Standard Fan |
|
Dimensions (W x D x H) (imperial) |
153.9 x 261.1 x 249.4 mm (6.06 x 10.3 x 9.82") |
|
Storage drive type |
None ship standard, 4 LFF supported |
|
Weight (imperial) |
7.97 kg (17.6 lbs) |
