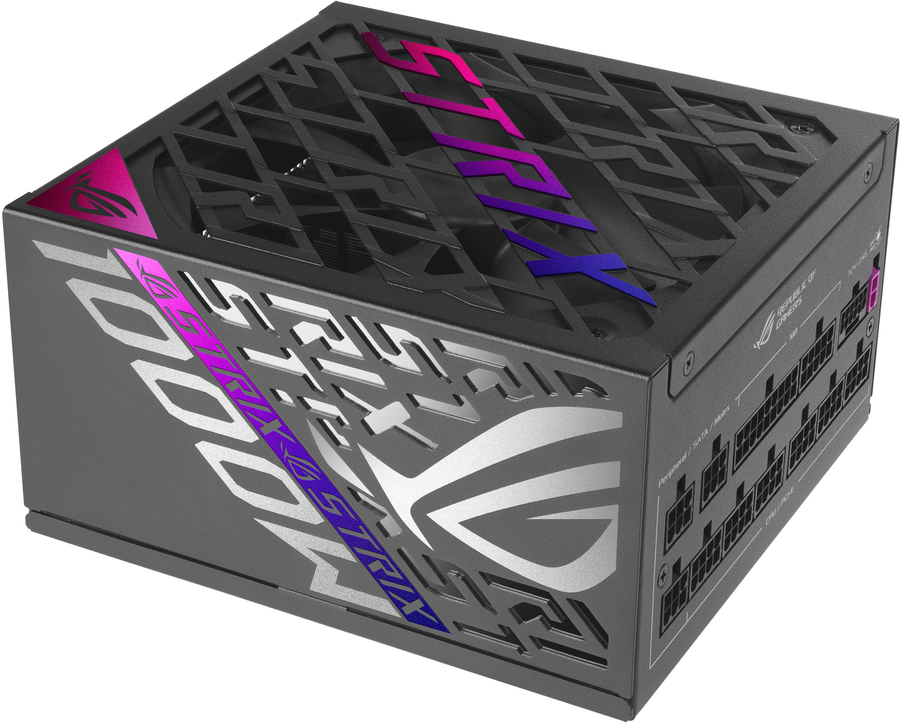

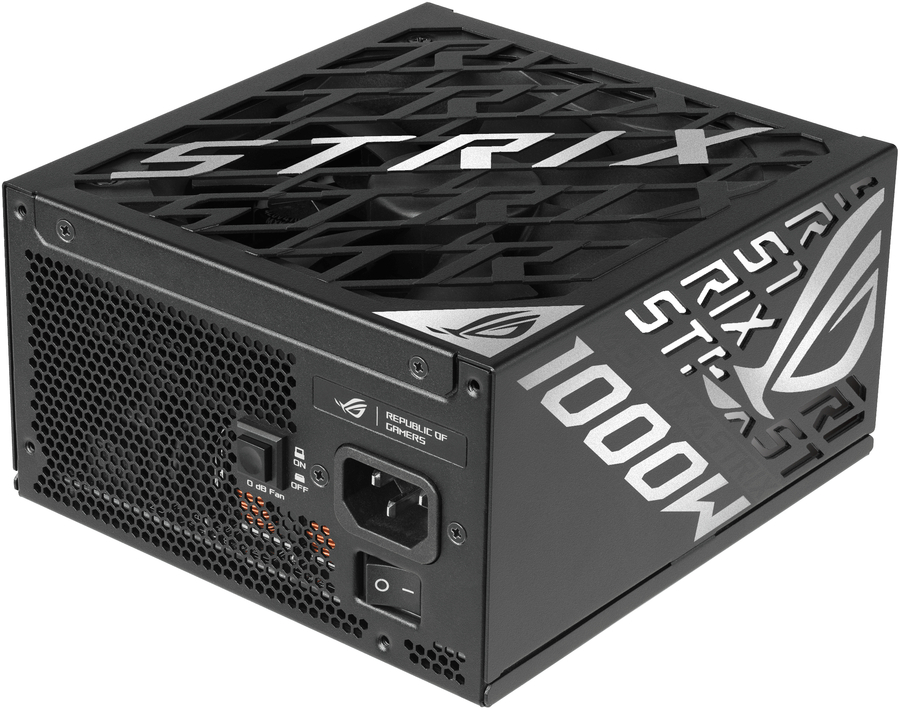

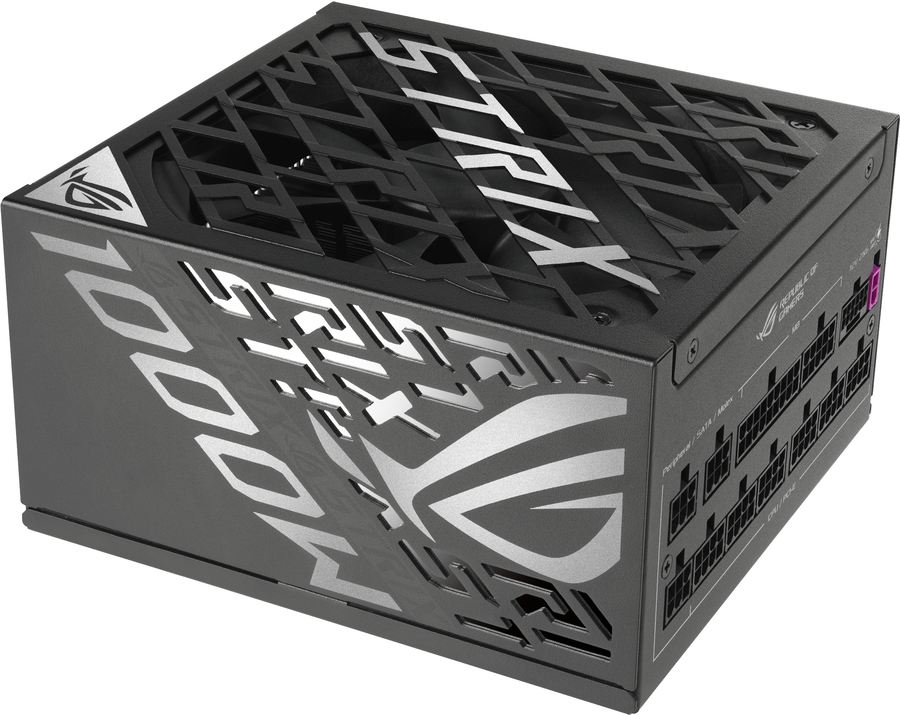

ROG STRIX 1000W PLATINUM (ROG EQUALIZER)
Superior Stability.
Next-Level Efficiency
The ROG Strix 1000W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.
The ROG Strix 1000W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2×6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
|
|
Power |
|
Total power |
1000 W |
|
AC input voltage |
100 - 240 V |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
130 W |
|
Combined power (+12V) |
1000 W |
|
Combined power (+5V) |
130 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
25 A |
|
Max output current (+12V) |
83.3 A |
|
Max output current (+5V) |
25 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
3 A |
|
Power protection features |
Overheating, Over current, Over power, Over voltage, Short circuit, Under power |
|

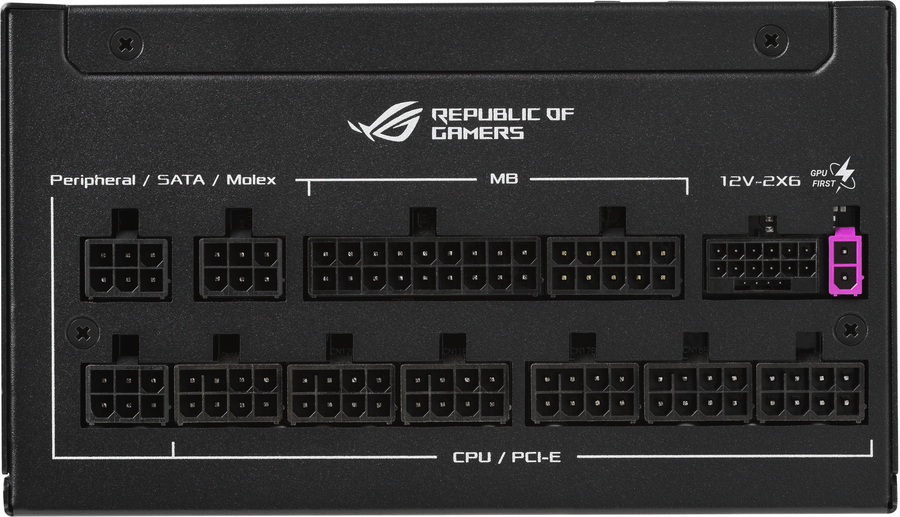

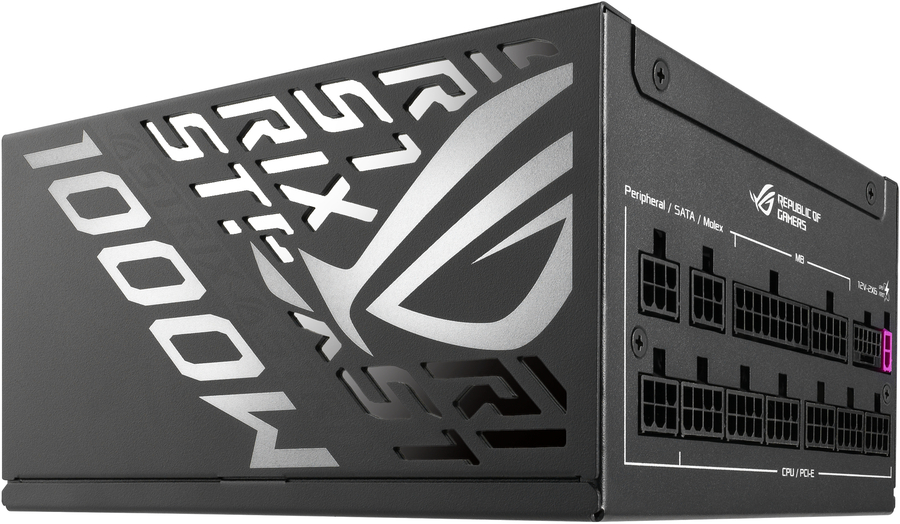

Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
3 |
|
Motherboard power cable length |
61 cm |
|
Number of SATA power connectors |
6 |
|
SATA power cable length |
400,120 mm |
|
Peripheral (Molex) power cable length |
400,150 mm |
|
PCI Express power connectors (6+2 pin) |
4 |
|
PCI Express power connectors (16-pin) |
1 |
|
PCI Express power cable length |
75 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
100 cm |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Platinum |
|
ATX version |
3.1 |
|
Bearing technology |
DBB |
|
Mean time between failures (MTBF) |
120000 h |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|

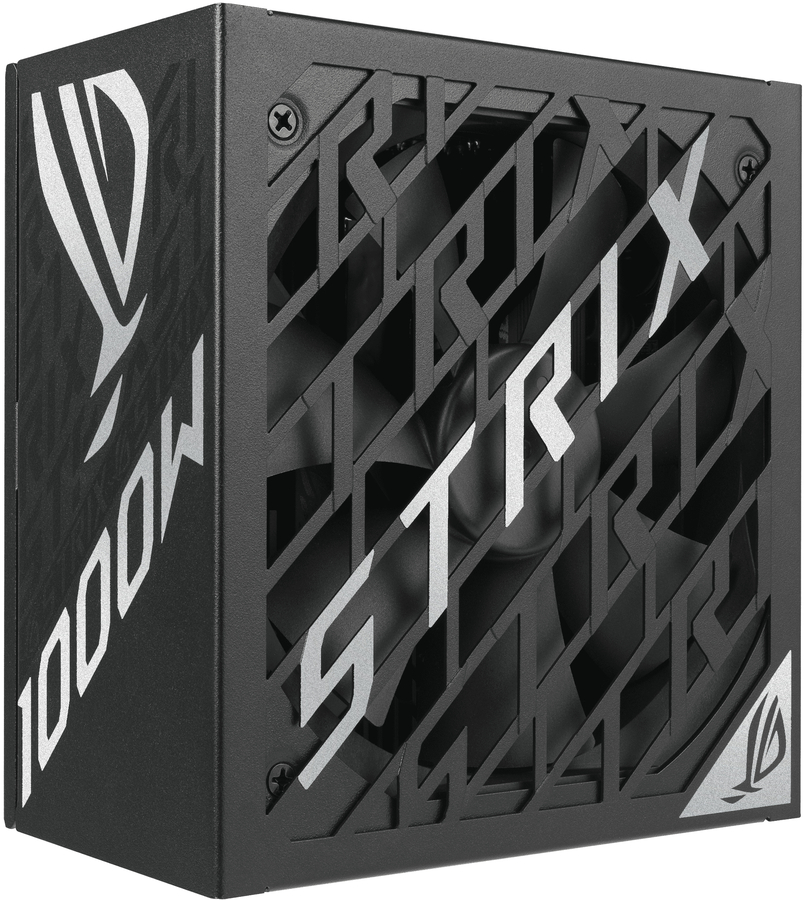

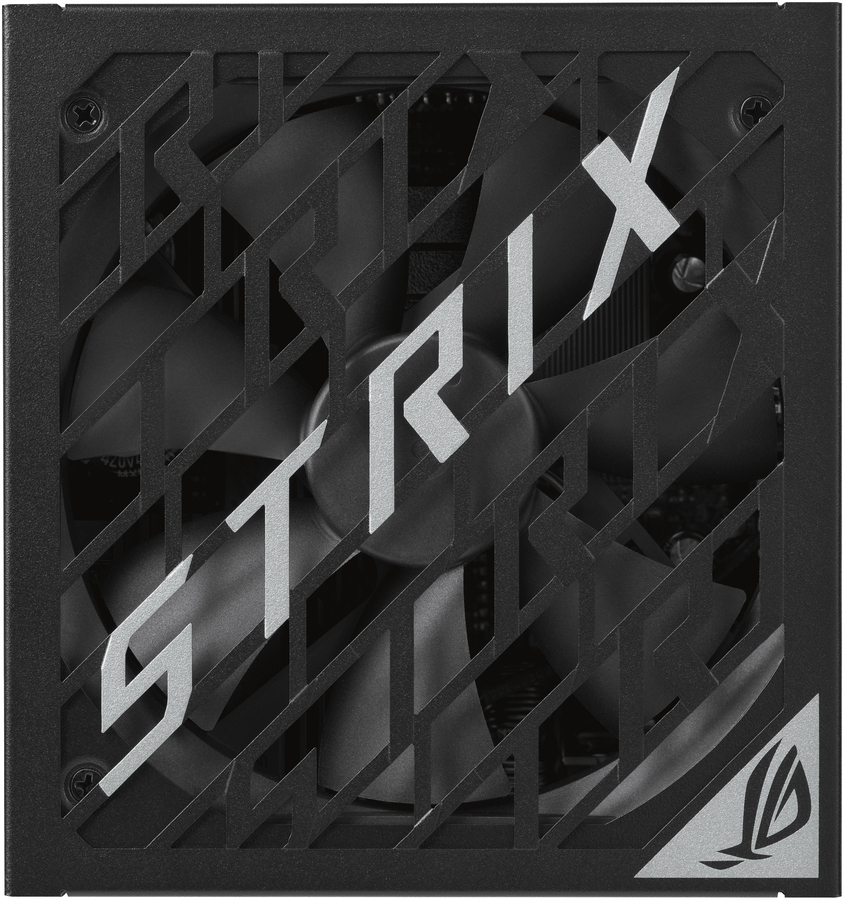

Number of fans |
1 fan(s) |
|

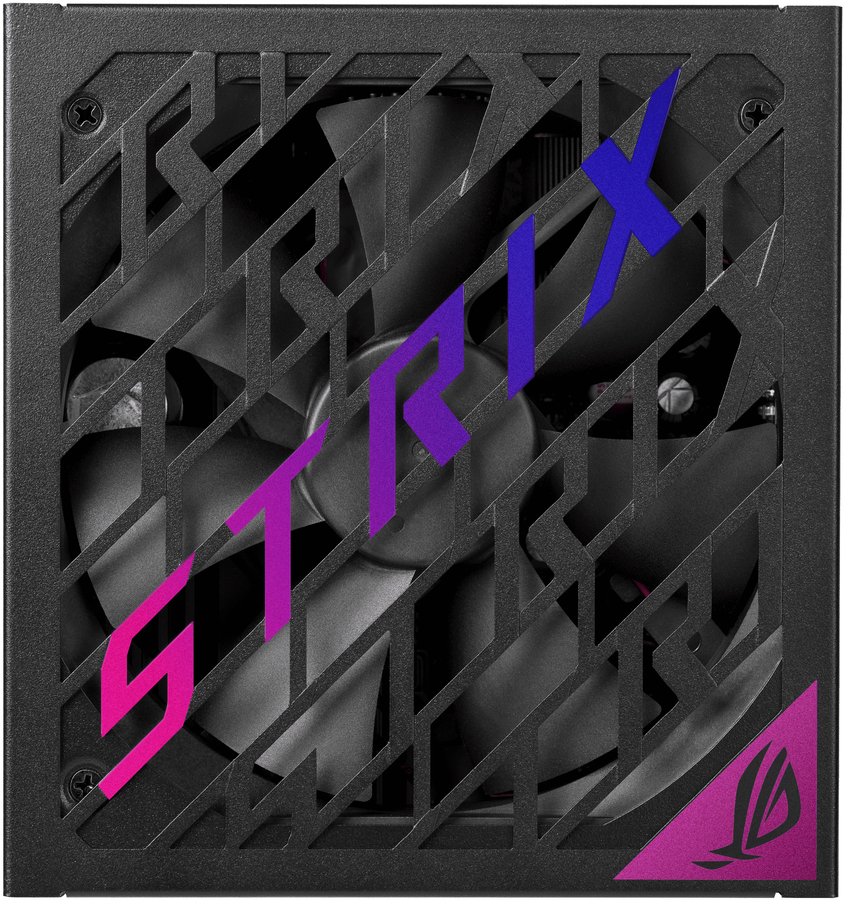

Fan location |
Top |
|

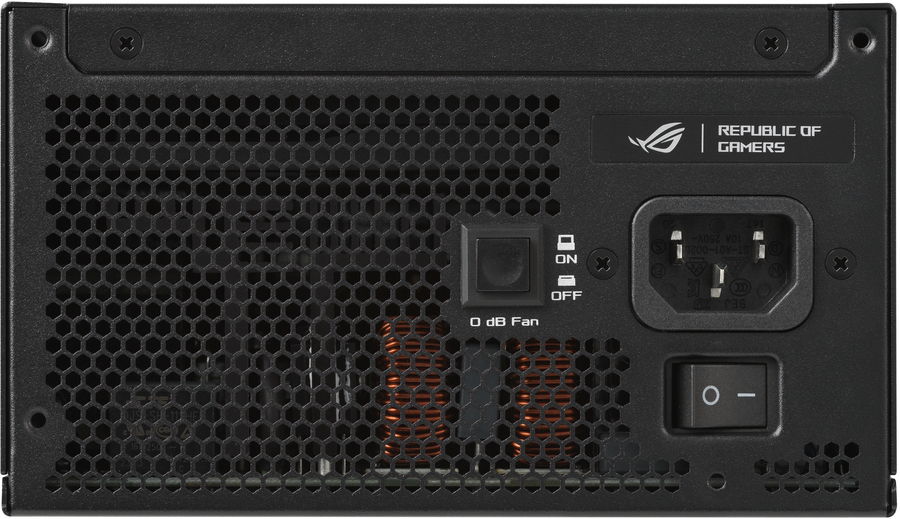

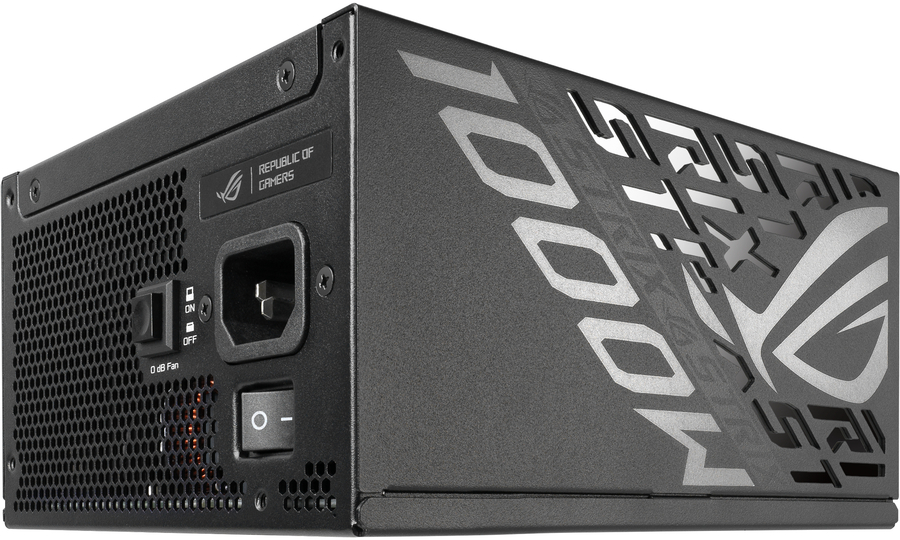

On/off switch |
Yes |
|
Packaging content |
|
Cables included |
CPU, PCIe, SATA, Peripheral (Molex) |
|
Weight & dimensions |
|
Width |
160 mm |
|
Depth |
150 mm |
|
Height |
86 mm |
|
Weight |
1.81 kg |
|
Packaging data |
|
Package width |
320 mm |
|
Package depth |
200 mm |
|
Package height |
108 mm |
|
Package weight |
3.62 kg |
|
Package type |
Box |
