General Information |
|
Summary |

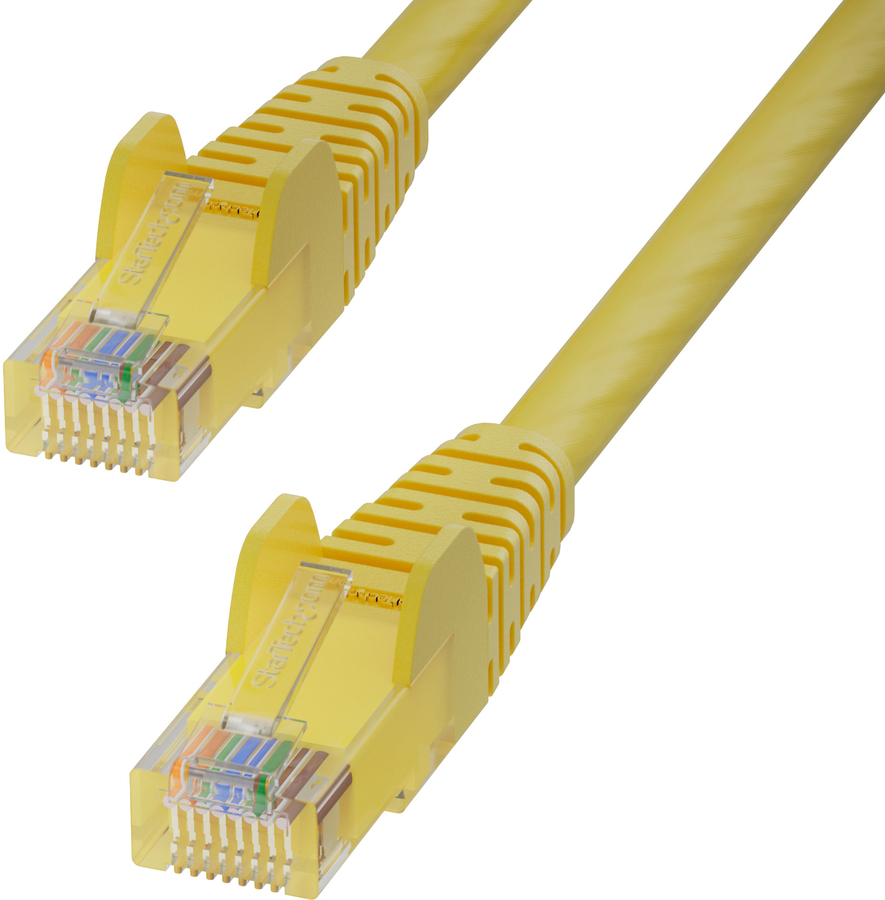

Standardize your Cat6 cabling with a broad selection of lengths and colors
This Snagless Cat 6 Patch Cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable PVC jacket that enables you to color code your network cable runs as needed.

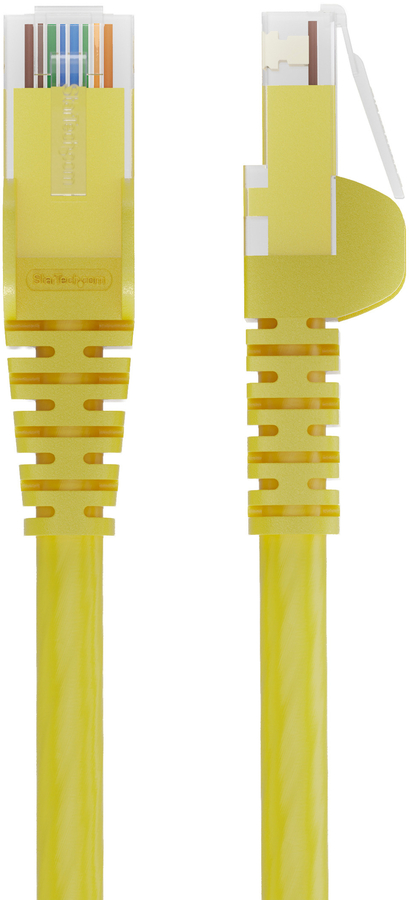

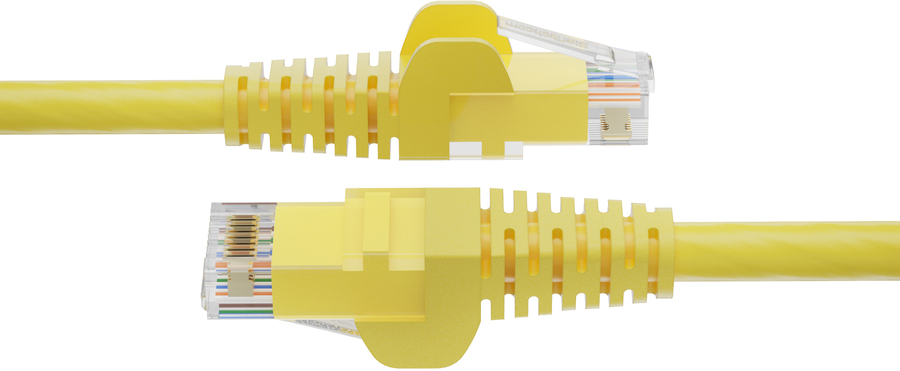

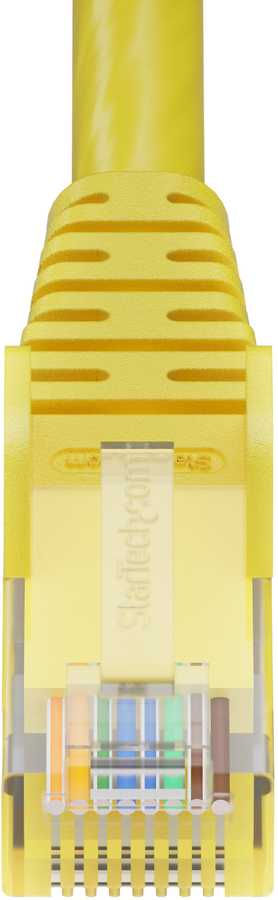

To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles - reducing the risk of cable damage, which could decrease network performance.
Our Cat6 cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a "cheaper" cable based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.
This Cat6 network cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.
The high quality connectors are plated with 50-micron gold to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion. |
|
Features |
|
Cable length |
7.6 m |
|
Cable standard |
Cat6 |
|
Cable shielding |
U/UTP (UTP) |
|
Connector 1 |
RJ-45 |
|
Connector 2 |
RJ-45 |
|
Product colour |
Yellow |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Cable shape |
Round |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector contacts plating |
Gold |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
Conductor type |
Stranded |
|
Conductor material |
Copper |
|
Ethernet interface type |
10 Gigabit Ethernet |
|
Networking standards |
IEEE 802.3bt |
|
AWG wire size |
24 |
|
Data transfer rate |
1000 Mbit/s |
|
Frequency |
250 MHz |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
|
Total Power over Ethernet (PoE) budget |
100 W |
|
Fire-resistant |
Yes |
|
Snagless cable boot |
Yes |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Certificates |
|
Certification |
TIA/EIA-T568B |
|
Weight & dimensions |
|
Outer diameter |
6 mm |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Packaging data |
|
Package width |
40 mm |
|
Package depth |
250 mm |
|
Package height |
280 mm |
|
Package weight |
310 g |
|
Logistics data |
|
Master (outer) case width |
200 mm |
|
Master (outer) case length |
300 mm |
|
Master (outer) case height |
460 mm |
|
Products per master (outer) case |
50 pc(s) |
