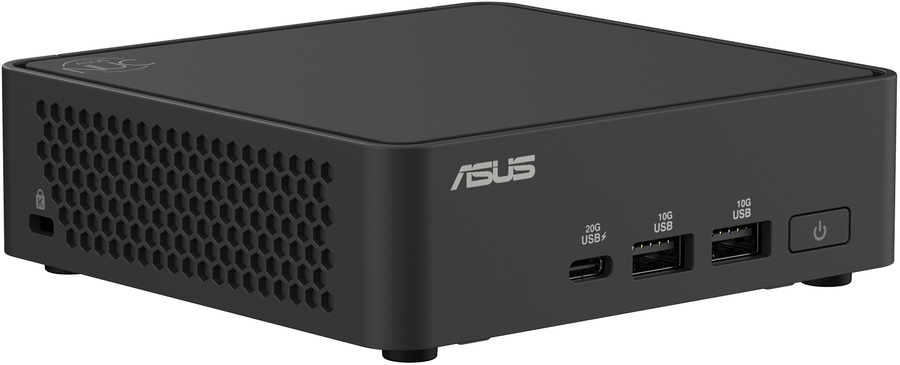

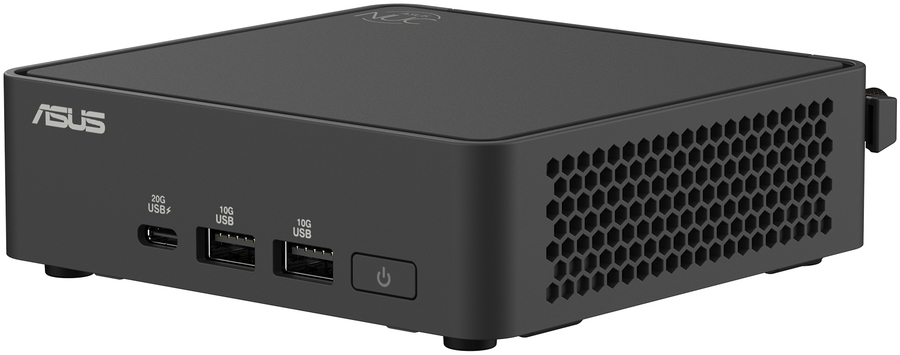

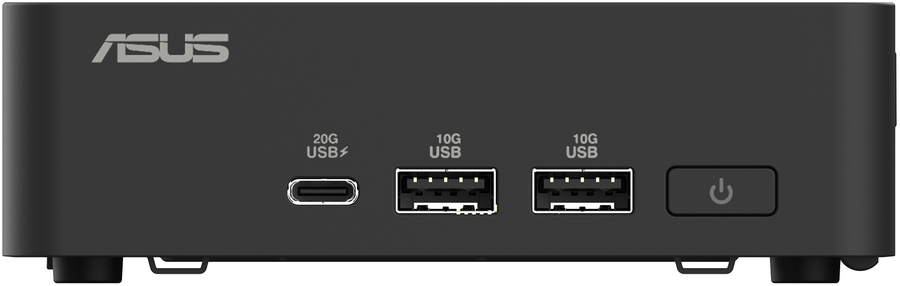

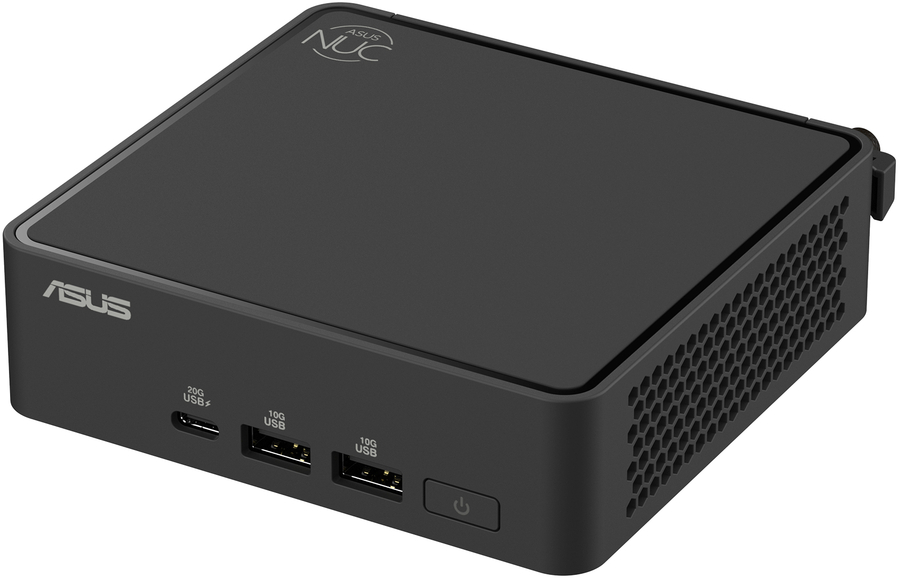

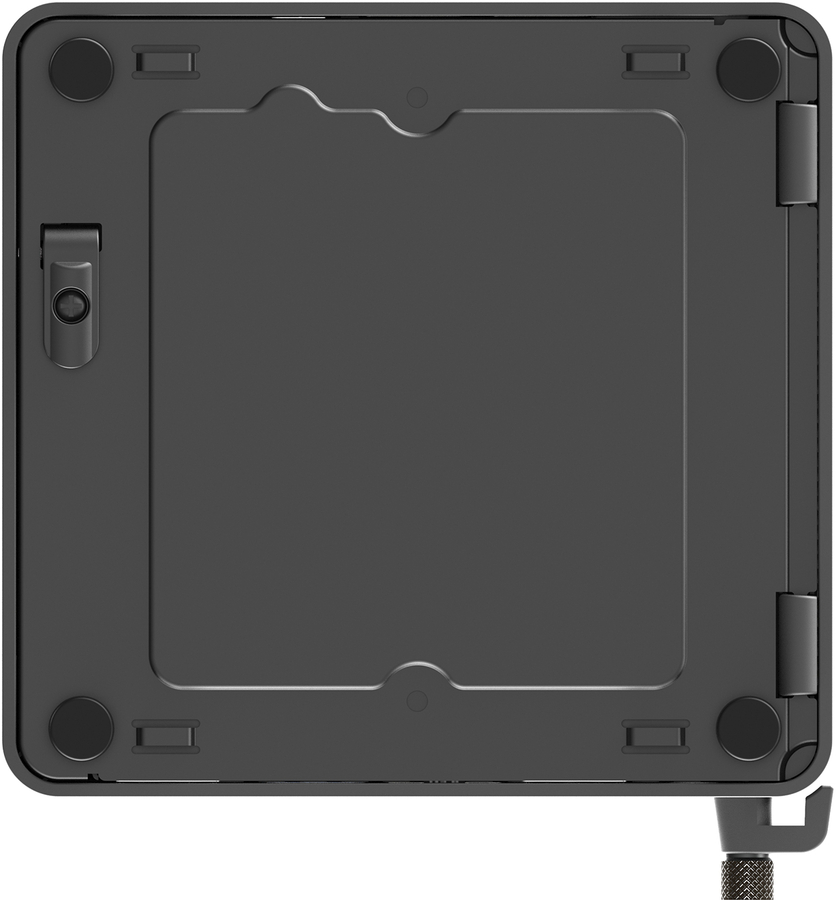

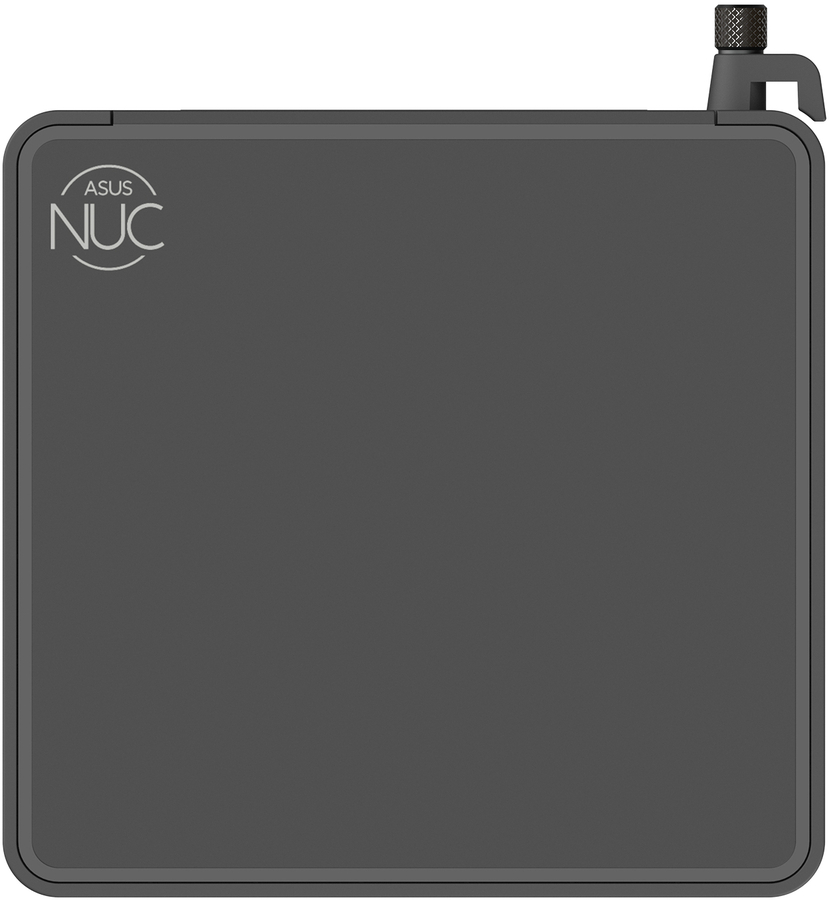

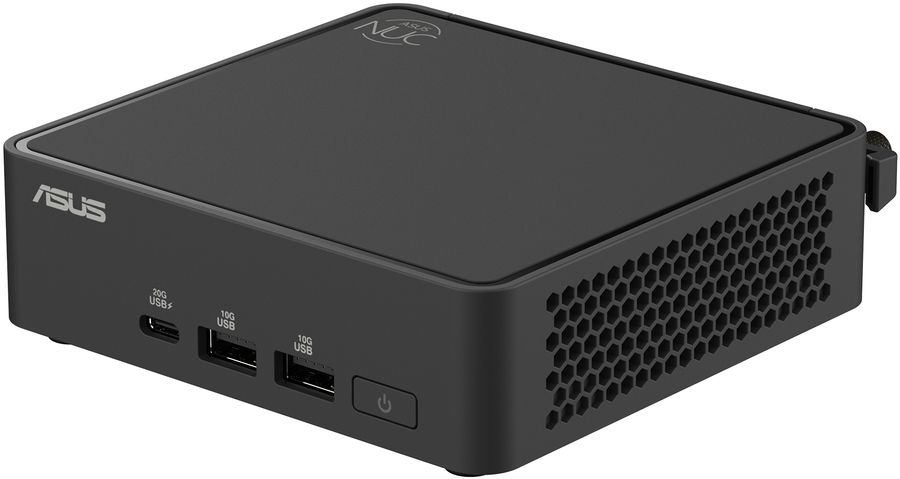

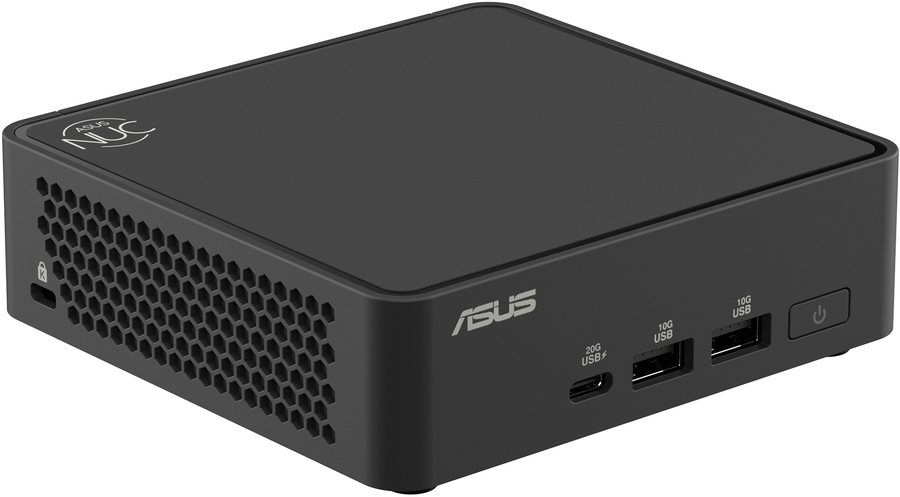

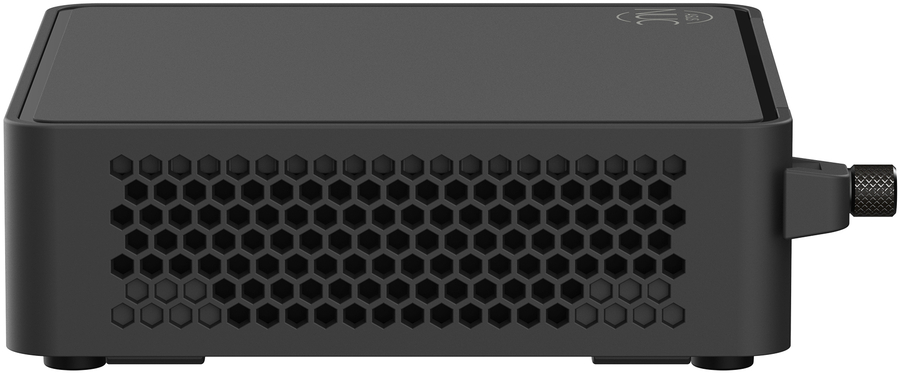

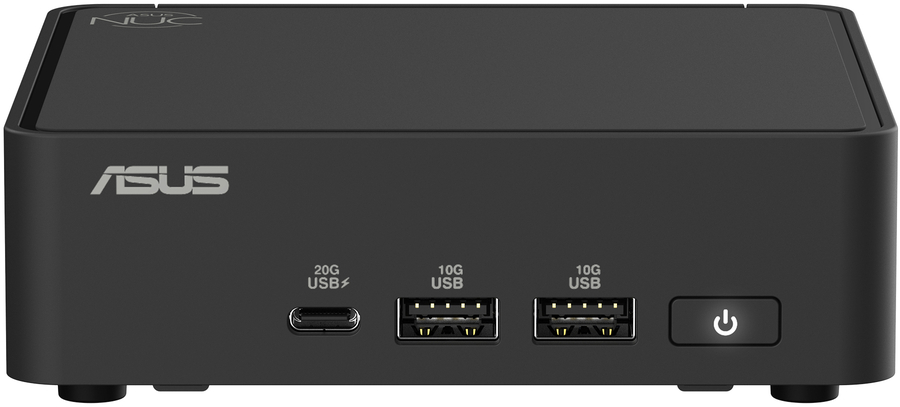

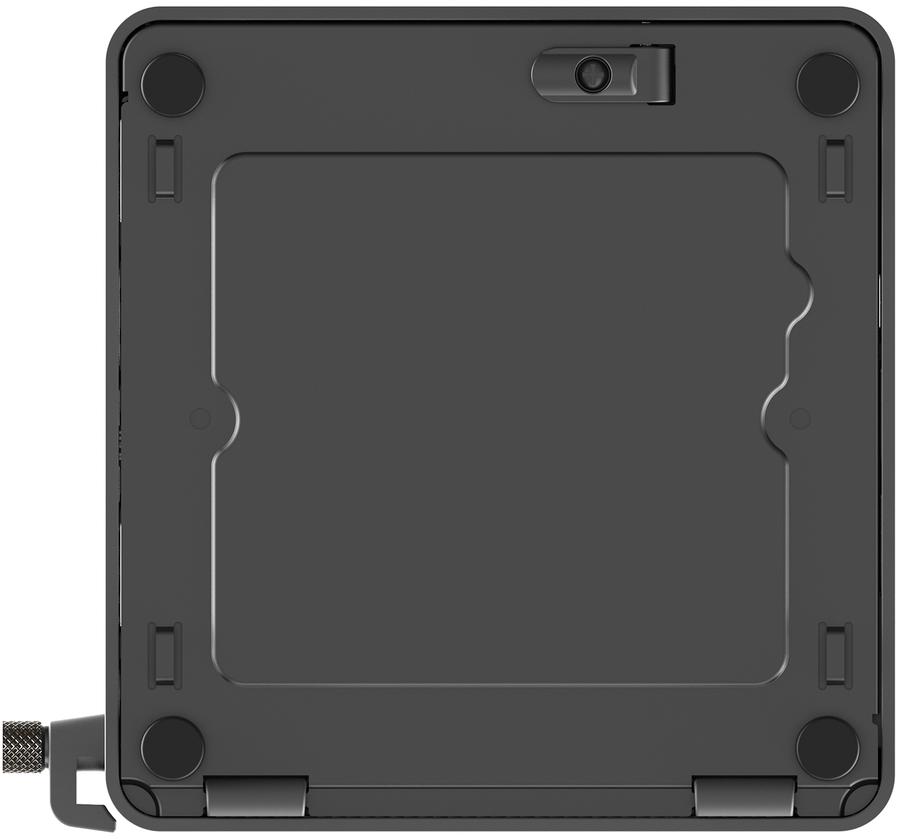

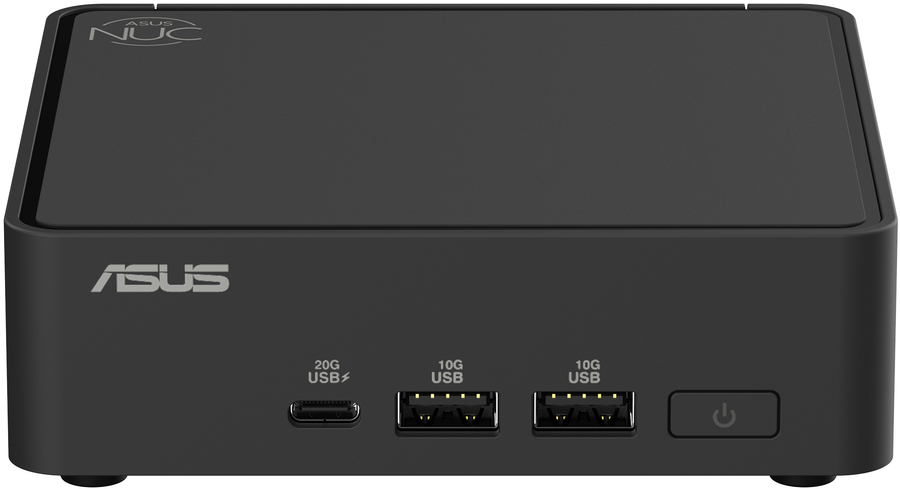

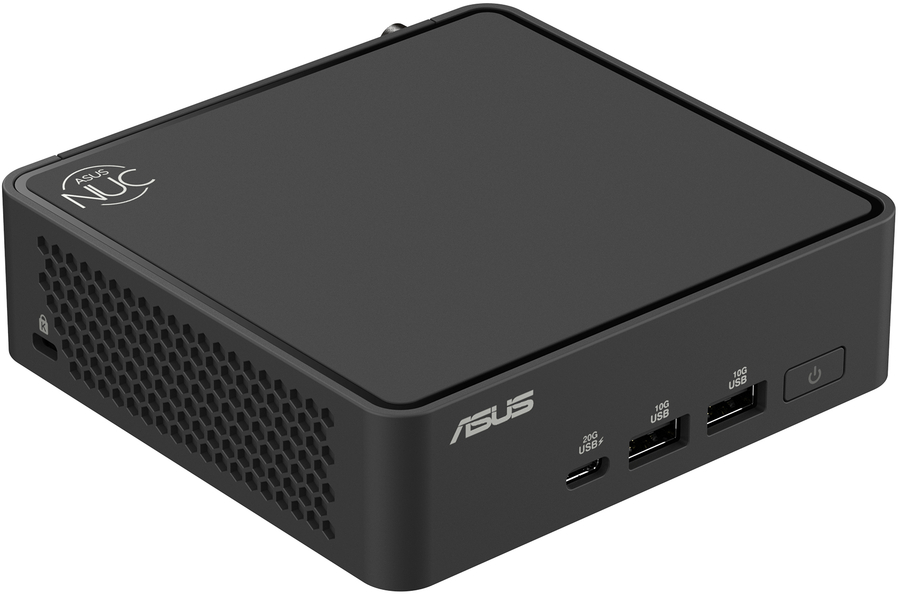

ASUS NUC 15 Pro
Best Compact Choice for the AI-Driven Future.
Experience the future of computing with ASUS NUC 15 Pro – a sleek mini PC that’s perfect for office and edge computing. Powered by the latest Intel® Core™ Ultra processor with DDR5 6400MHz memory and Intel Arc™ graphics, ASUS NUC 15 Pro delivers unmatched speed and efficiency in a scratch-resistance matte texture chassis |
|
Processor |
|
Processor family |
Intel Core 7 |
|
Processor manufacturer |
Intel |
|
Processor model |
240H |
|
Processor generation |
Intel Core (Series 2) |
|
Processor cores |
10 |
|
Processor threads |
16 |
|
Processor boost frequency |
5.2 GHz |
|
Performance cores |
6 |
|
Efficient cores |
4 |
|
Performance-core Max Turbo Frequency |
5.2 GHz |
|
Efficient-core Max Turbo Frequency |
4 GHz |
|
Performance-core base frequency |
2.5 GHz |
|
Efficient-core base frequency |
1.8 GHz |
|
Processor cache |
24 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
45 W |
|
Maximum turbo power |
115 W |
|
Memory |
|
Internal memory |
32 GB |
|
Maximum internal memory |
96 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory slots |
2x SO-DIMM |
|
Memory clock speed |
5600 MHz |
|
Storage |
|
Total storage capacity |
1 TB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
1 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
1 TB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® Graphics |
|
Performance |
|
Product type |
Mini PC |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
LAN controller |
Intel I226-V |
|
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
|
Wi-Fi standards |
Wi-Fi 7 (802.11be) |
|
WLAN controller manufacturer |
Intel |
|
WLAN controller model |
Intel Wi-Fi 7 BE202 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.4 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
2 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
Intel® Thunderbolt 4 |
Yes |
|
Thunderbolt 4 ports quantity |
2 |
|
HDMI version |
2.1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
DC-in jack |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Colour name |
Black |
|
Placement supported |
Horizontal/Vertical |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system architecture |
64-bit |
|
Display |
|
Display included |
No |
|
Weight & dimensions |
|
Width |
117 mm |
|
Depth |
112 mm |
|
Height |
37 mm |
|
Weight |
500 g |
