TP-Link TL-POE150S PoE Injector
|
|
Price: $35.00
Manufacturer:
TP-Link
IEEE 802.3af PoE Injector
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
65646
|
POE150S
|
6935364030506 |
Active
|
Details
|
General Information |
|
Summary |

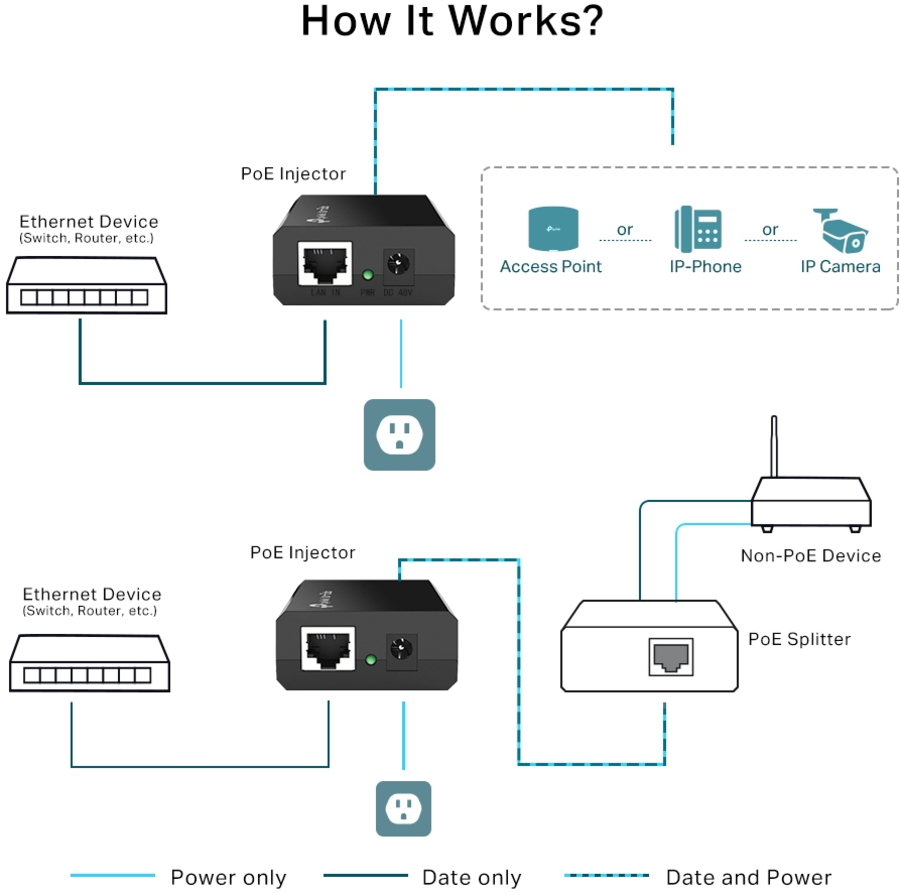

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. |
|
Network |
|
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000 |
|
Power over Ethernet (PoE) |
Yes |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
|
Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
|
Features |
|
Product colour |
Black |
|
Plug and Play |
Yes |
|
Maximum operating distance |
100 m |
|
LED indicators |
Yes |
|
Auto-sensing |
Yes |
|
Auto-negotiation |
Yes |
|
Ports & interfaces |
|
RJ-45 input ports |
1 |
|
RJ-45 output ports |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Input voltage |
48 V |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
80.8 mm |
|
Depth |
54 mm |
|
Height |
24 mm |
|
Packaging content |
|
Number of products included |
1 pc(s) |
|
AC adapter included |
Yes |
|
Quick installation guide |
Yes |
|
Packaging data |
|
Package width |
65 mm |
|
Package depth |
198 mm |
|
Package height |
65 mm |
|
Package weight |
350 g |
|
