StarTech 2S1P Native PCI Express Parallel Serial Combo Card

Home :: I/O Devices ::


Regularly: $69.00
On Sale: $66.24    Sale Ends: April 12th, 2024

Manufacturer: StarTech

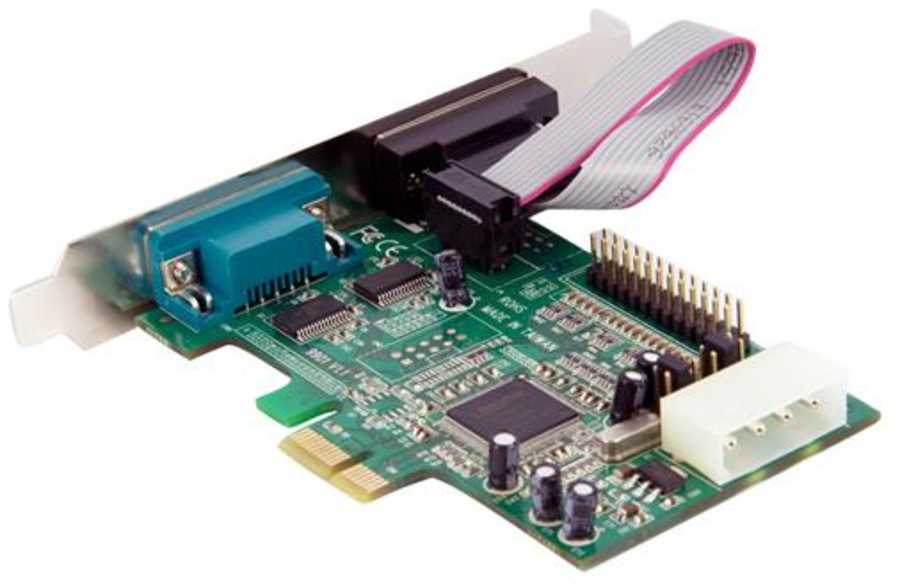

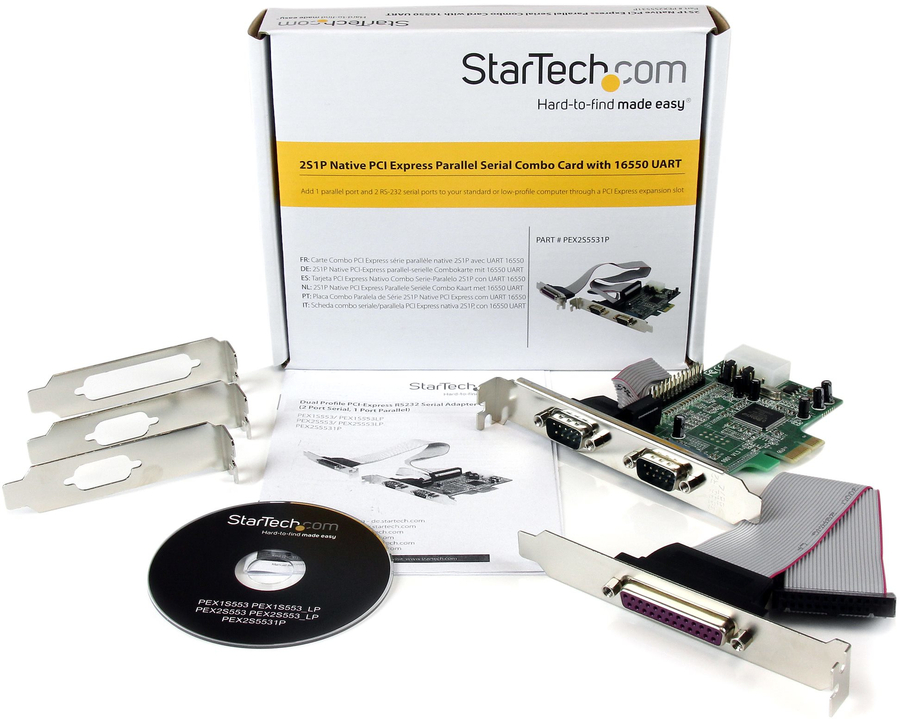

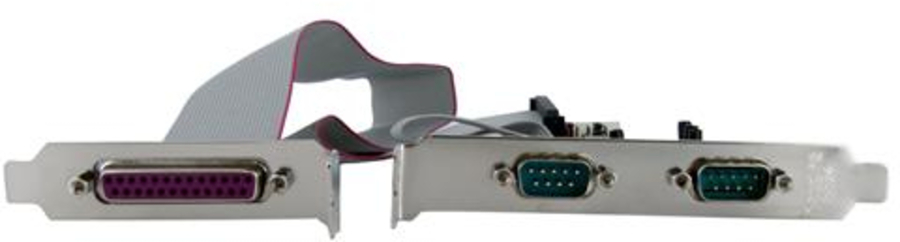

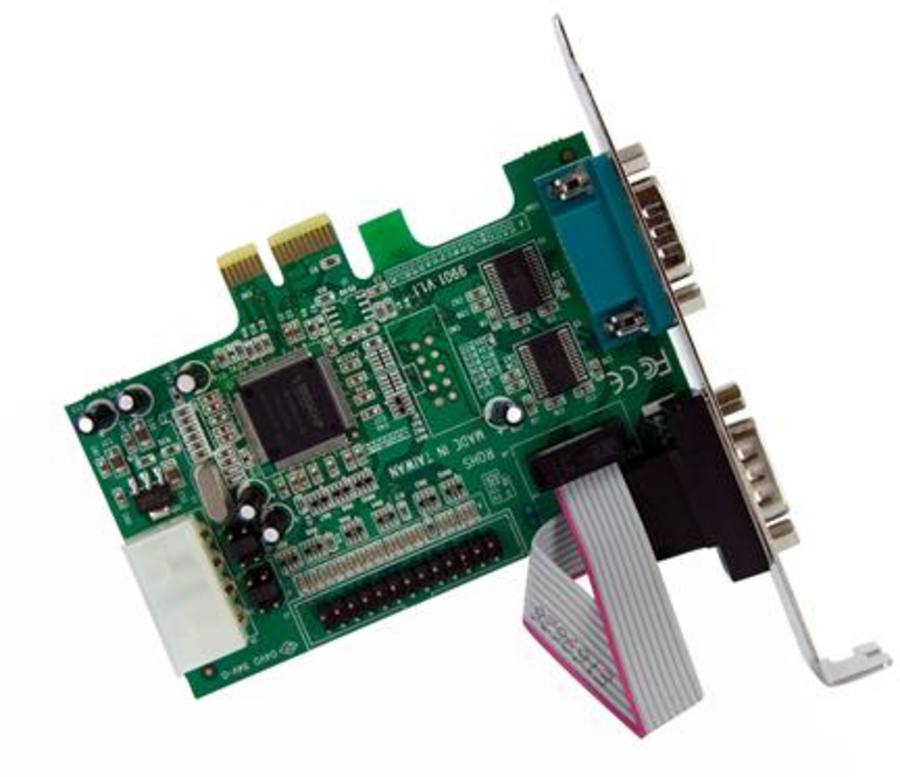

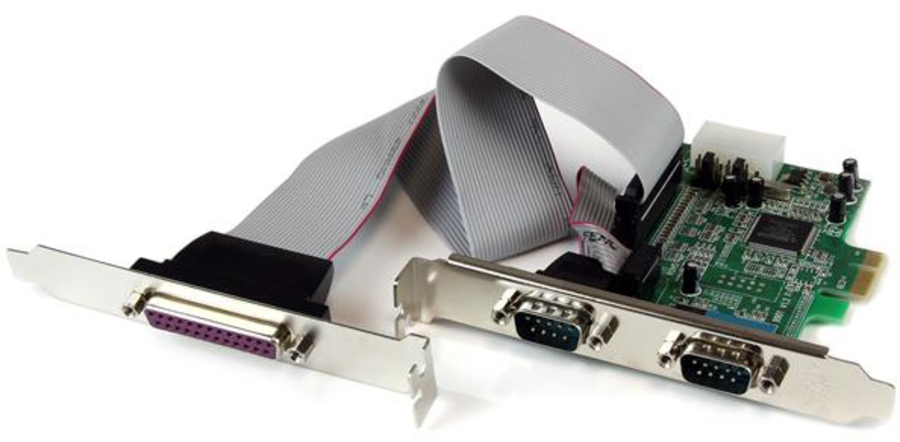

StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART - PCIe 2x Serial 1x Parallel RS232 Adapter Card (PEX2S5531P)

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
66525 PEX2S5531P 65030841764 Active

Details

General Information
Summary Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slotThe PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.This product is a replacement for our PEX2S5521P card.Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces
Host interface PCIe
Output interface Serial
Expansion card standard PCIe 1.0a
Serial ports quantity 2
Serial interface type RS-232
Parallel ports quantity 1
Design
Internal Yes
Product colour Green, Stainless steel
Features
Chipset ASIX - MCS9901CV-CC
Baud rate 460.8 Kbit/s
FIFO (First In, First Out) 128 B
Flow Control type DTR/DSR, RTS/CTS, XON/XOFF
Supported protocols EPP, ECP, SPP, PS/2
Operational conditions
Operating temperature (T-T) -10 - 80 °C
Storage temperature (T-T) -20 - 100 °C
Operating relative humidity (H-H) 5 - 85%
System requirements
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows CE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported Windows Embedded POSReady 2009, Windows Embedded Standard 2009
Technical details
Sustainability certificates CE, RoHS
Weight & dimensions
Width 120 mm
Depth 105 mm
Height 20 mm
Weight 112 g
Packaging data
Drivers included Yes
Manual Yes
Package width 145 mm
Package depth 174 mm
Package height 31 mm
Package weight 208 g
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 75 pc(s)
Master (outer) case width 355 mm
Master (outer) case length 679 mm
Master (outer) case height 320 mm
