General Information |
|
Summary |

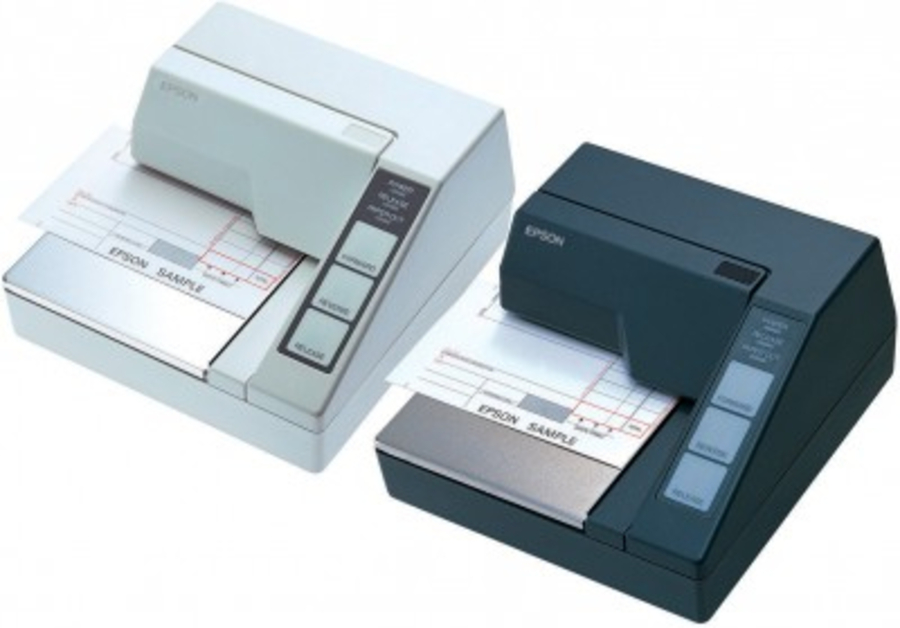

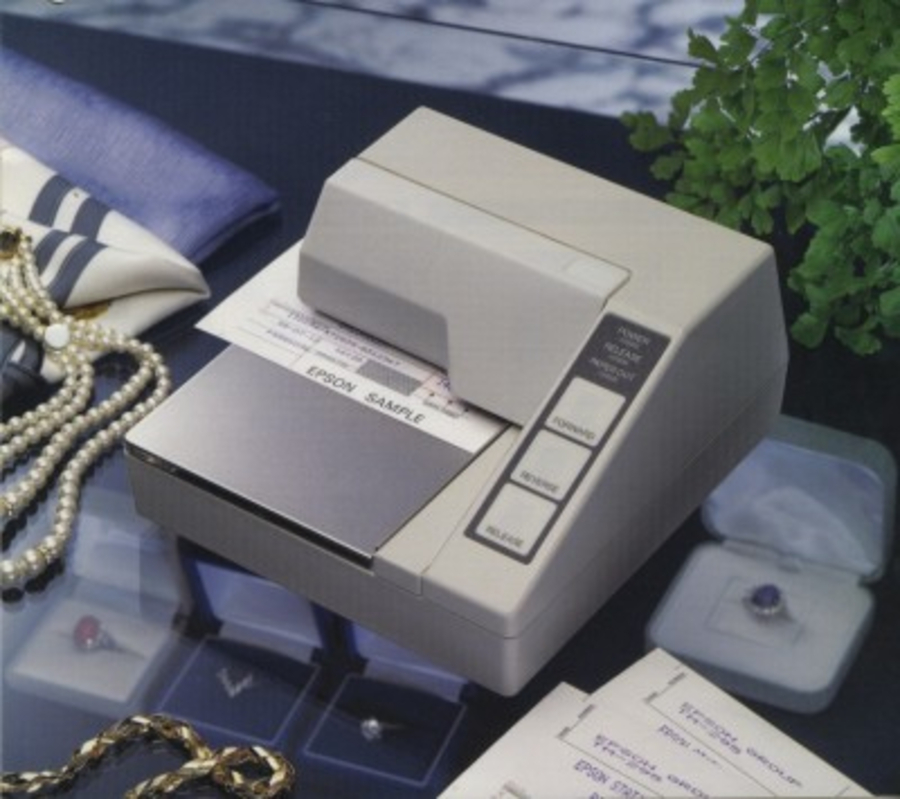

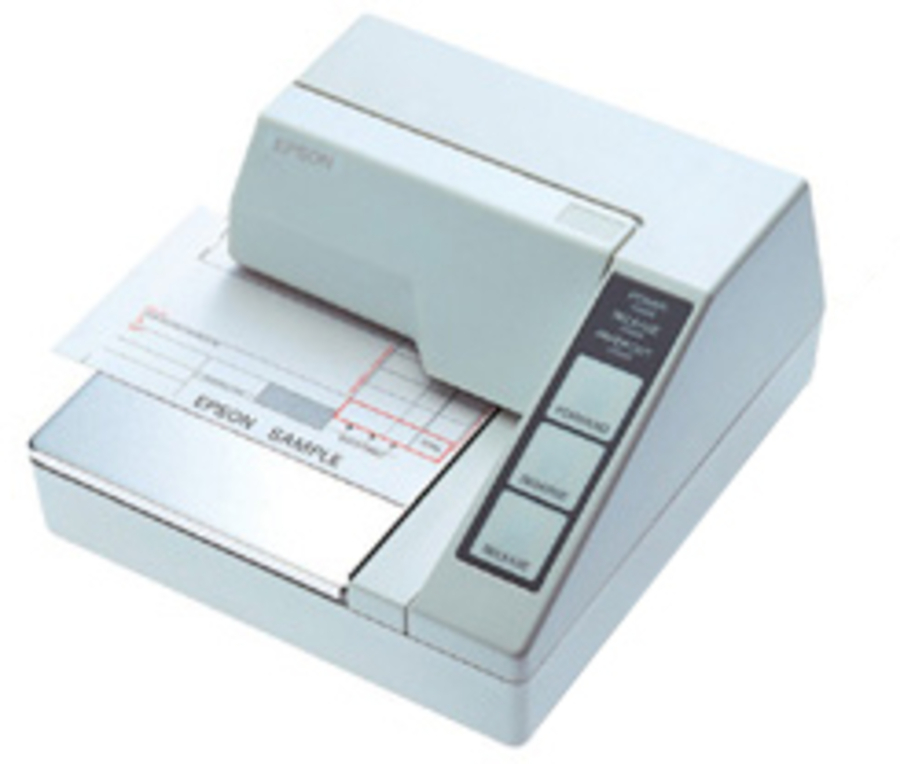

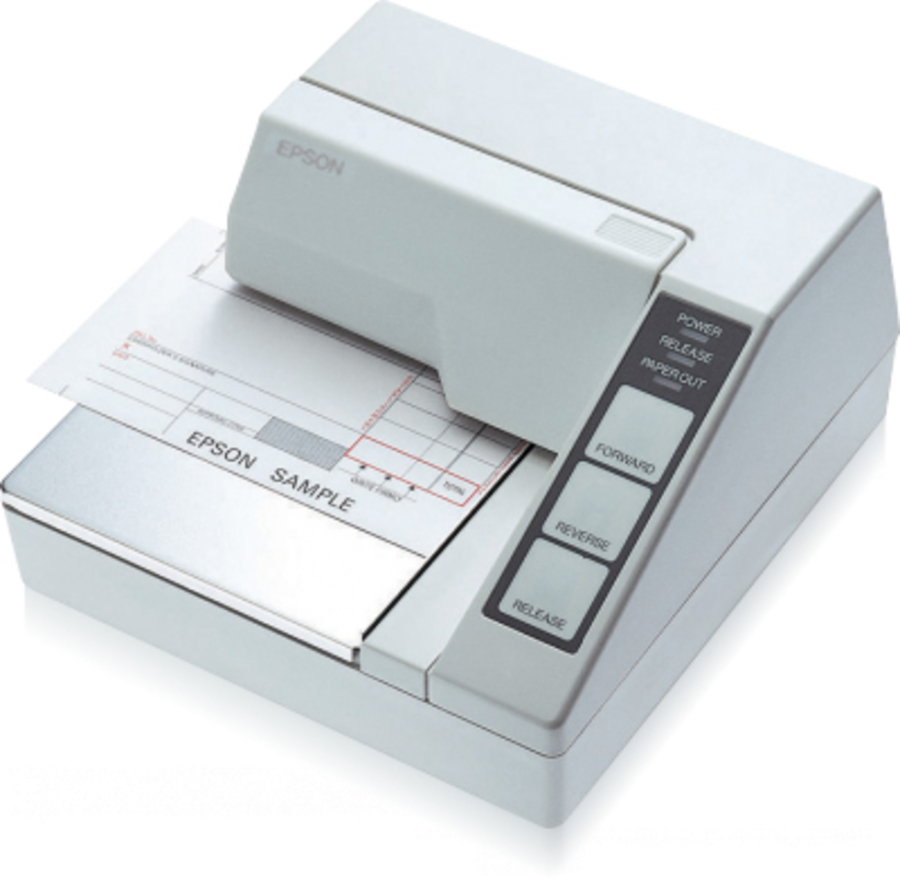

Authorisation slip printer
SLIP IMPACT PACKAGED PRINTER; Serial; Epson Cool White (ECW); no Power Supply |
|
Printing |
|
Colour |
No |
|
Character density |
16.2 cpi |
|
Paper handling |
|
Printing media thickness |
0.09/0.35 µm |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Interface |
RS-232, Drawer kick-out |
|
Features |
|
Sound pressure level (printing) |
65 dB |
|
Mean time between failures (MTBF) |
180000 h |
|
Country of origin |
Japan |
|
Maximum number of copies |
2 copies |
|
Ribbon life |
1.5 million characters |
|
Safety |
UL, CSA C22.2 No. 950 |
|
Design |
|
Product colour |
White |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 40 °C |
|
Storage temperature (T-T) |
-10 - 50 °C |
|
Operating relative humidity (H-H) |
30 - 85% |
|
Storage relative humidity (H-H) |
30 - 90% |
|
Weight & dimensions |
|
Width |
180 mm |
|
Depth |
191 mm |
|
Height |
102 mm |
|
Weight |
1.6 kg |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
235 mm |
|
Package depth |
270 mm |
|
Package height |
185 mm |
|
Package weight |
1.84 kg |
|
Logistics data |
|
Harmonized System (HS) code |
84433210 |
|
Products per master (outer) case |
4 pc(s) |
|
Master (outer) case width |
300 mm |
|
Master (outer) case length |
485 mm |
|
Master (outer) case height |
405 mm |
|
Products per pallet |
120 pc(s) |
|
Products per pallet layer |
24 pc(s) |
|
Pallet gross width |
120 cm |
|
Pallet gross height |
100 cm |
|
Products per pallet (UK) |
160 pc(s) |
|
Products per pallet layer (UK) |
32 pc(s) |
|
Pallet length (UK) |
120 cm |
|
Pallet height (UK) |
137 cm |
|
Other features |
|
Dimensions (WxDxH) |
180 x 190.5 x 101.5 mm |
|
Electromagnetic compatibility |
VCCI class A, FCC class A, CE marking |
|
Technical details |
|
Box contents |
Main unit, Ribbon, User manual |
