General Information |
|
Summary |

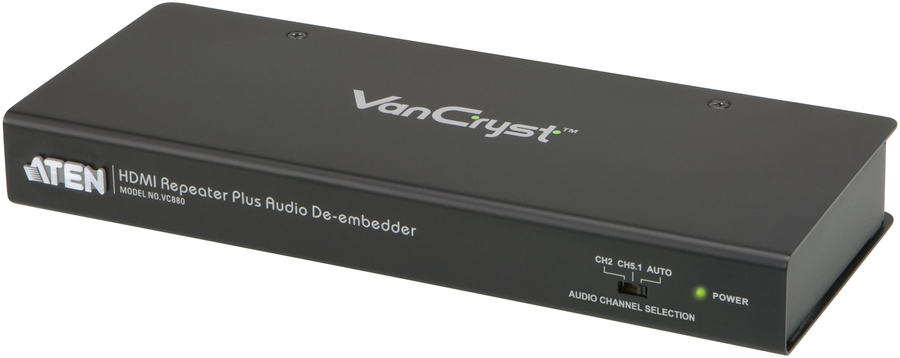

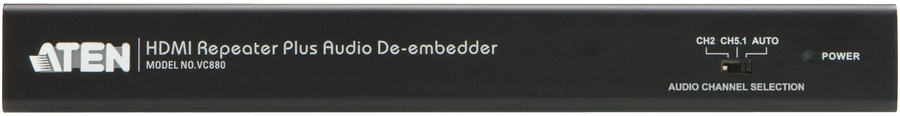

The VC880 is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high defi nition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers. |
|
Features |
|
Maximum resolution |
1920 x 1080 pixels |
|
Audio system |
stereo |
|
Supported video modes |
1080p |
|
Supported graphics resolutions |
1920 x 1080 (HD 1080) |
|
Bandwidth |
225 MHz |
|
On/off switch |
Yes |
|
HDCP |
Yes |
|
3D |
Yes |
|
Firmware upgradeable |
Yes |
|
Impedance |
100 Ω |
|
Product colour |
Black |
|
HDBaseT certified |
Yes |
|

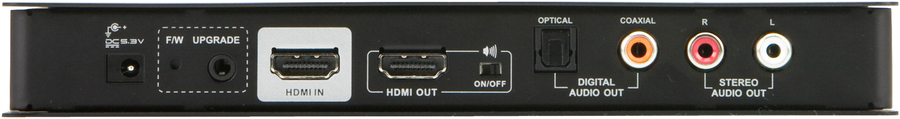

Ports & interfaces |
|
HDMI in |
1 |
|
Number of HDMI outputs |
1 |
|
Video in |
1 x HDMI Type A Female (Black) |
|
Video out |
1 x HDMI Type A Female (Black) |
|
Audio (L/R) out |
1 |
|
Audio output |
1 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange); 2 x RCA (Red/White); |
|
Audio RCA outputs |
3 |
|
DC-in jack |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
200 x 82 x 250 mm |
|
Weight |
460 g |
|
Packaging content |
|
AC adapter included |
Yes |
|
Manual |
Yes |
