General Information |
|
Summary |

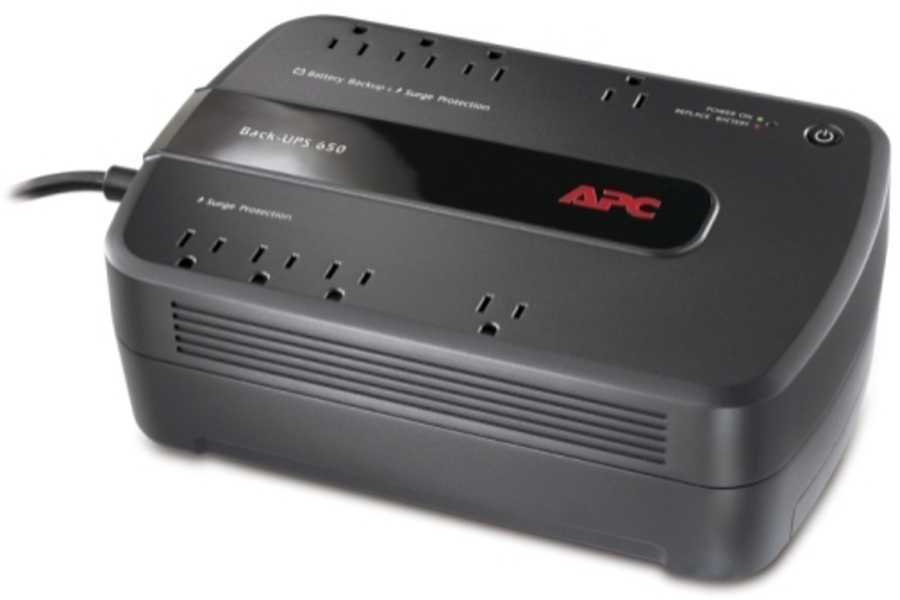

APC Back-UPS 650, 8 Outlet |
|
Features |
|
UPS topology |
Standby (Offline) |
|
Output power capacity |
0.65 kVA |
|
Output power |
390 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
90 V |
|
Input operation voltage (max) |
140 V |
|
Input frequency |
60 Hz |
|
Output operation voltage (min) |
120 V |
|
Output operation voltage (max) |
120 V |
|
Output frequency |
60 Hz |
|
Maximum current |
12 A |
|
Surge energy rating |
340 J |
|
Response time |
8 ms |
|
Noise level |
45 dB |
|

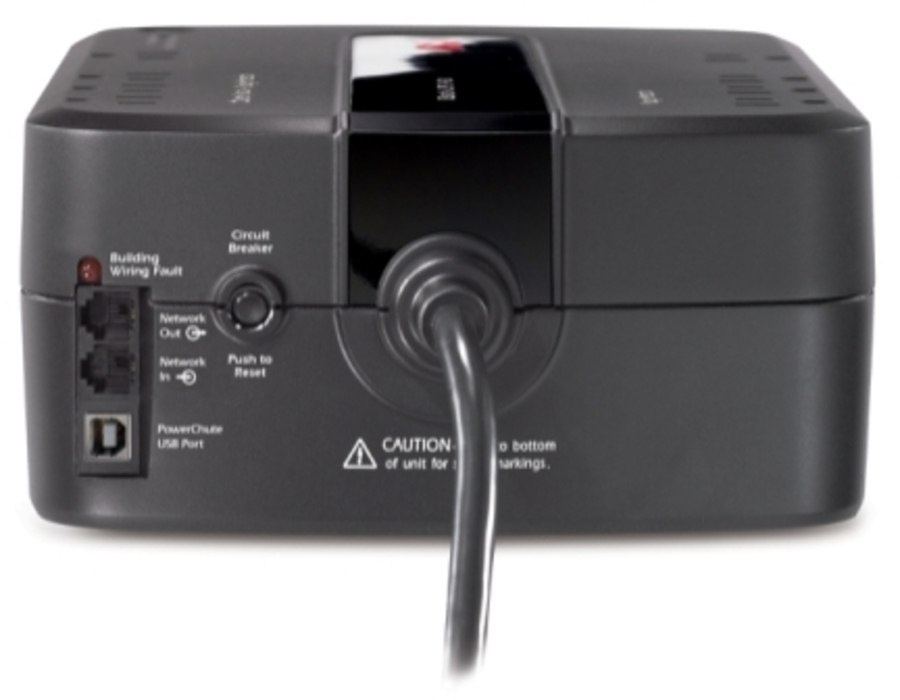

Ports & interfaces |
|
AC outlet types |
NEMA 5–15R |
|
AC outlets quantity |
8 AC outlet(s) |
|
USB port |
Yes |
|
Ethernet LAN (RJ-45) ports |
2 |
|
Cabling technology |
10/100Base-T |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery capacity |
79 Ah |
|
Battery life (max) |
5 year(s) |
|
Battery recharge time |
24 h |
|
Design |
|
Form factor |
Compact |
|
Product colour |
Black |
|
Cable length |
1.5 m |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3048 m |
|
Non-operating altitude |
0 - 15240 m |
|
Weight & dimensions |
|
Width |
180 mm |
|
Depth |
302 mm |
|
Height |
88 mm |
|
Weight |
6.2 kg |
|
Packaging data |
|
Package width |
235 mm |
|
Package depth |
393 mm |
|
Package height |
128 mm |
|
Package weight |
7 kg |
|
Logistics data |
|
Master (outer) case width |
279 mm |
|
Master (outer) case length |
406 mm |
|
Master (outer) case height |
254 mm |
|
Master (outer) case gross weight |
14.4 kg |
