General Information |
|
Summary |
Connect an HDMI®-capable display to a Mini-DisplayPort®-equipped PC or Mac® computer

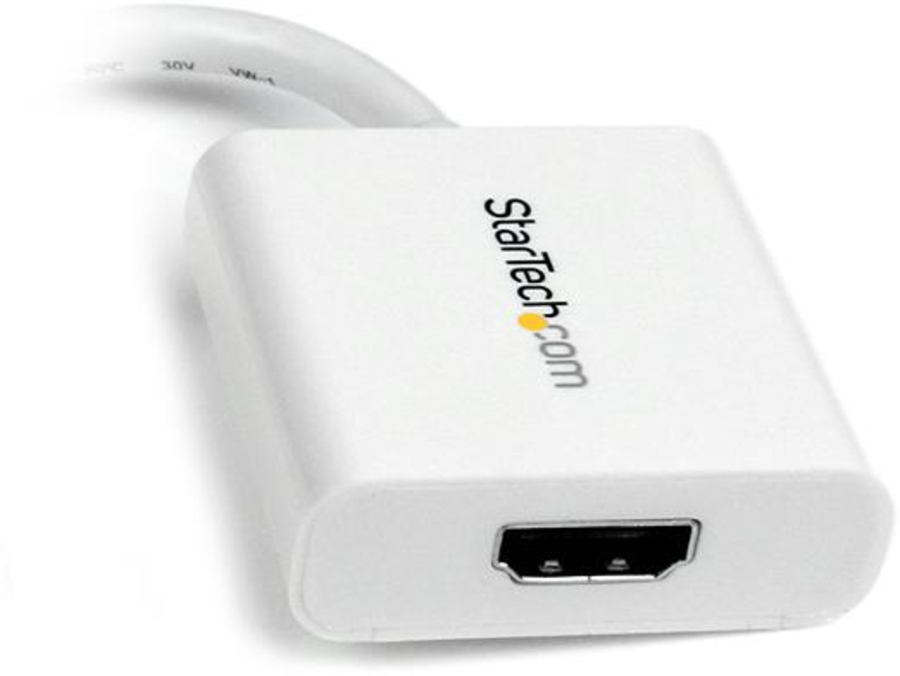

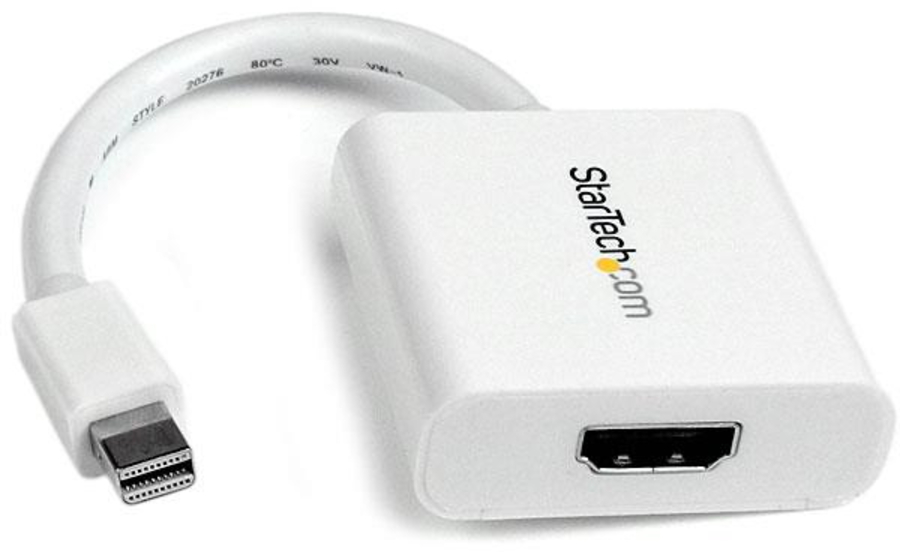

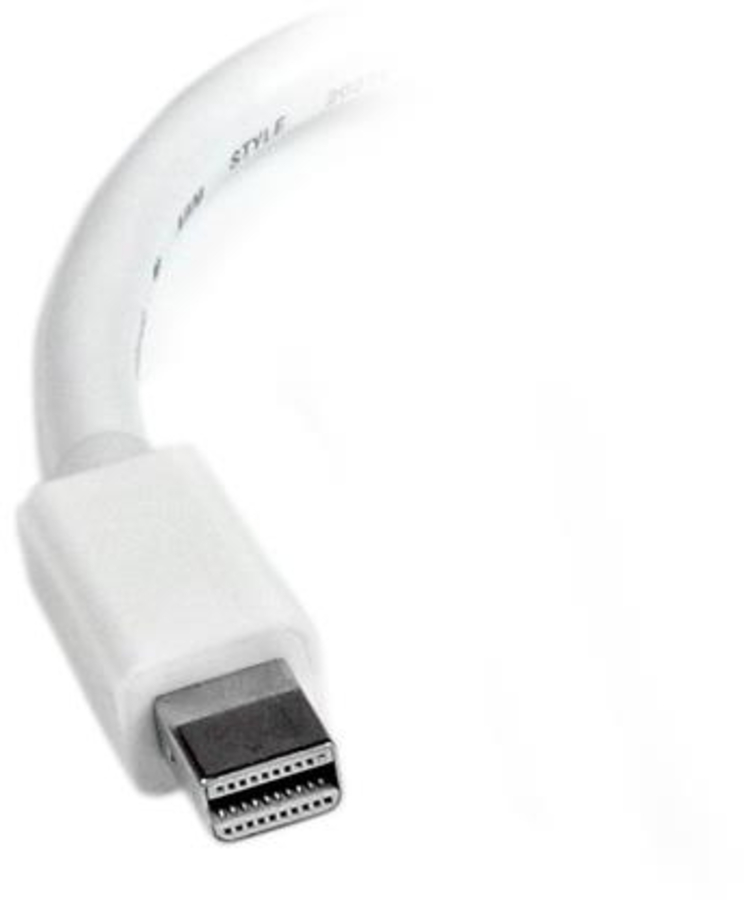

The MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
|
|
Features |
|
Cable length |
0.12 m |
|
Connector 1 |
Mini-DisplayPort |
|
Connector 2 |
HDMI |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDMI version |
1.4 |
|
HDCP |
Yes |
|
HDCP version |
1.4 |
|
DisplayPort version |
1.2 |
|
DisplayPort Content Protection (DPCP) |
Yes |
|
Maximum resolution |
1920 x 1200 pixels |
|
Supported video modes |
1080p |
|
Product colour |
White |
|
Chipset |
NXP - PTN3361 |
|
Supported audio channels |
7.1 |
|
Plug and Play |
Yes |
|
Converter type |
Passive video converter |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
40 - 85% |
|
Certificates |
|
Compliance certificates |
CE, RoHS |
|
Weight & dimensions |
|
Weight |
24 g |
|
Width |
40 mm |
|
Depth |
170 mm |
|
Height |
15 mm |
|
Packaging data |
|
Package width |
160 mm |
|
Package depth |
240 mm |
|
Package height |
20 mm |
|
Package weight |
50 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
270 mm |
|
Master (outer) case length |
455 mm |
|
Master (outer) case height |
355 mm |
|
Products per master (outer) case |
200 pc(s) |
|
Other features |
|
Material |
Plastic |
