General Information |
|
Summary |

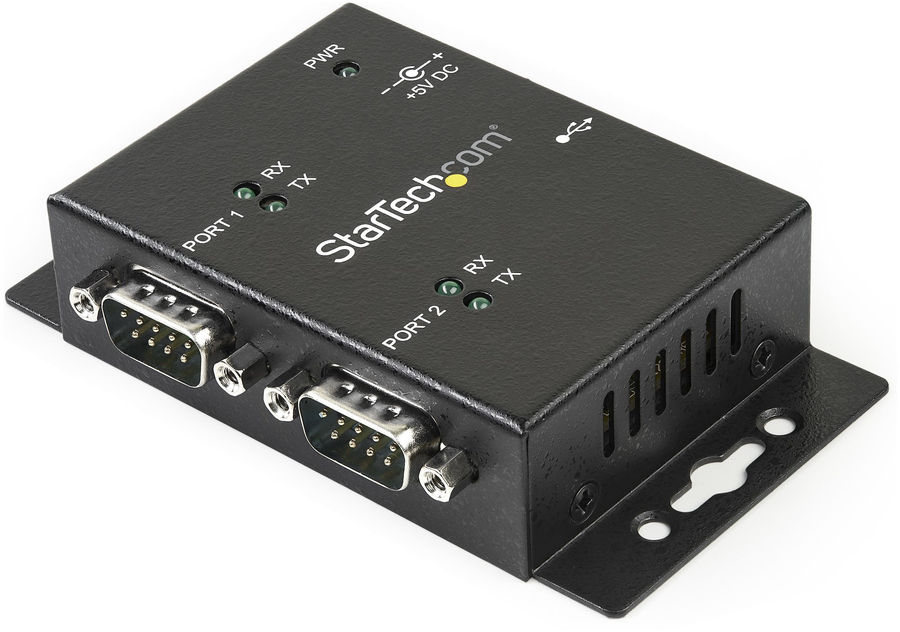

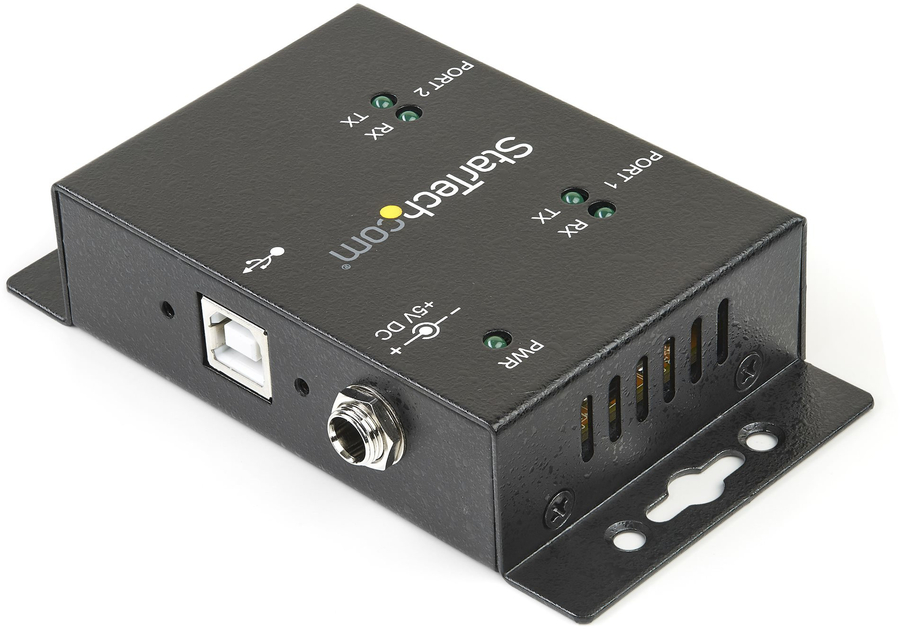

Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB
The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required |
|
Ports & interfaces |
|
Ports quantity |
2 |
|
Host interface |
USB 2.0 Type-B |
|
Hub interfaces |
Serial |
|

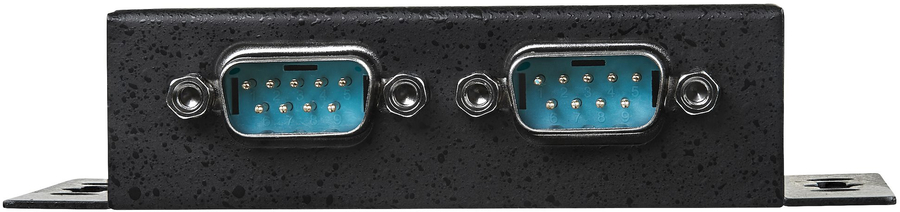

RS-232 ports |
2 |
|
Features |
|
Product colour |
Black |
|
Housing material |
Steel |
|
LED indicators |
Activity |
|
System requirements |
|
Windows operating systems supported |
Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
|
Linux operating systems supported |
Yes |
|
Other operating systems supported |
Windows XP Embedded |
|
Compatible operating systems |
Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x |
|
Weight & dimensions |
|
Width |
66 mm |
|
Depth |
104 mm |
|
Height |
24 mm |
|
Weight |
162 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
145 mm |
|
Package depth |
214 mm |
|
Package height |
41 mm |
|
Package weight |
400 g |
|

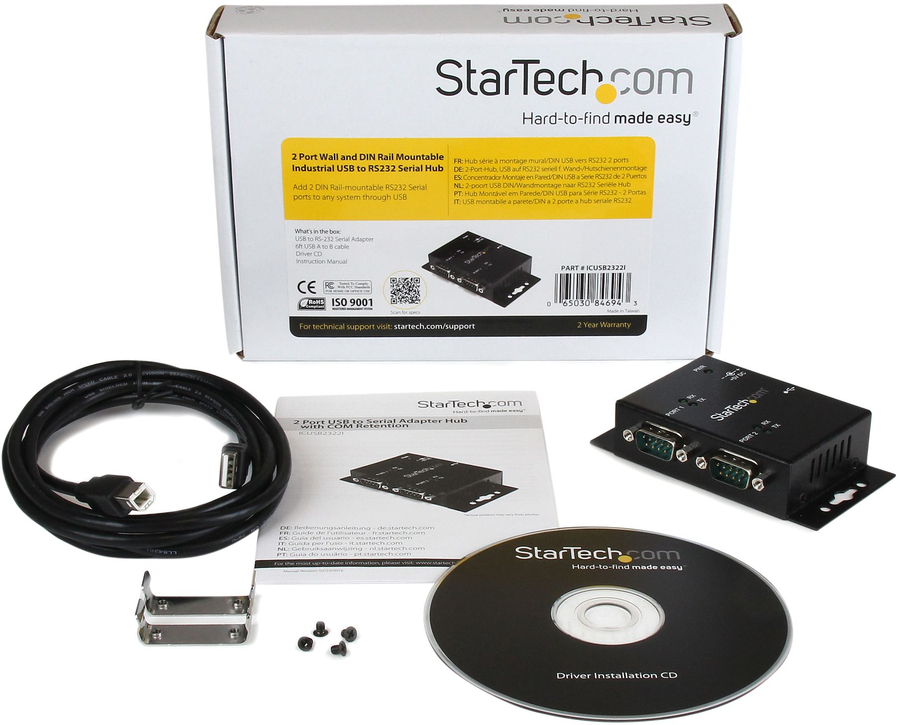

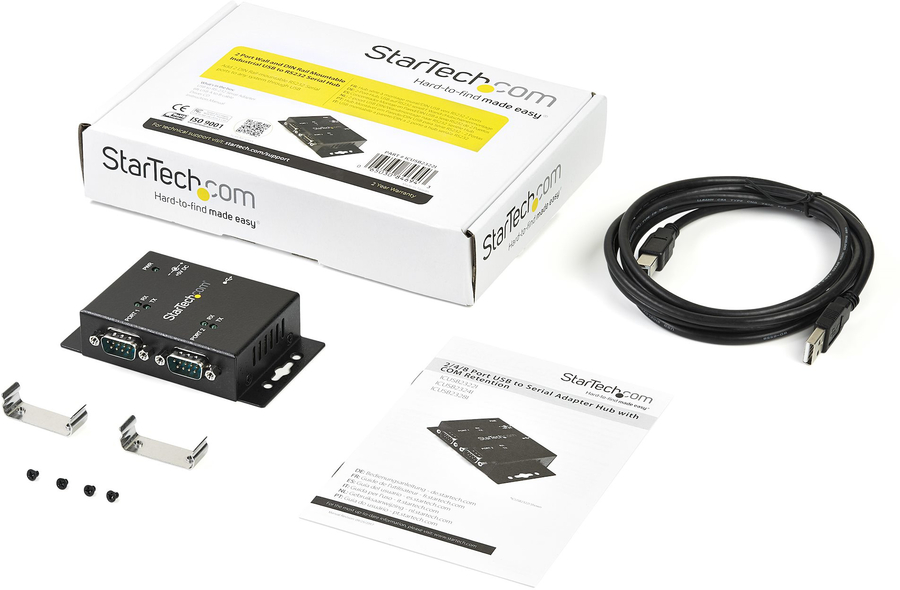

Packaging content |
|
Cables included |
USB |
|
Manual |
Yes |
|
DIN rail kit included |
Yes |
|
Drivers included |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Storage temperature (T-T) |
-20 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Performance |
|
Data bits |
7, 8 |
|
Stop bits |
1, 2 |
|
Parity bit |
Even, Mark, No, Odd, Space |
|
FIFO (First In, First Out) |
256 B |
|
Baud rate |
921.6 Kbit/s |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
CE, RoHS |
|
Logistics data |
|
Master (outer) case width |
444 mm |
|
Master (outer) case length |
525 mm |
|
Master (outer) case height |
364 mm |
|
Products per master (outer) case |
45 pc(s) |
|
Harmonized System (HS) code |
84719000 |
|
Other features |
|
Chipset |
FTDI - FT232RL |
|
