General Information |
|
Summary |
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows

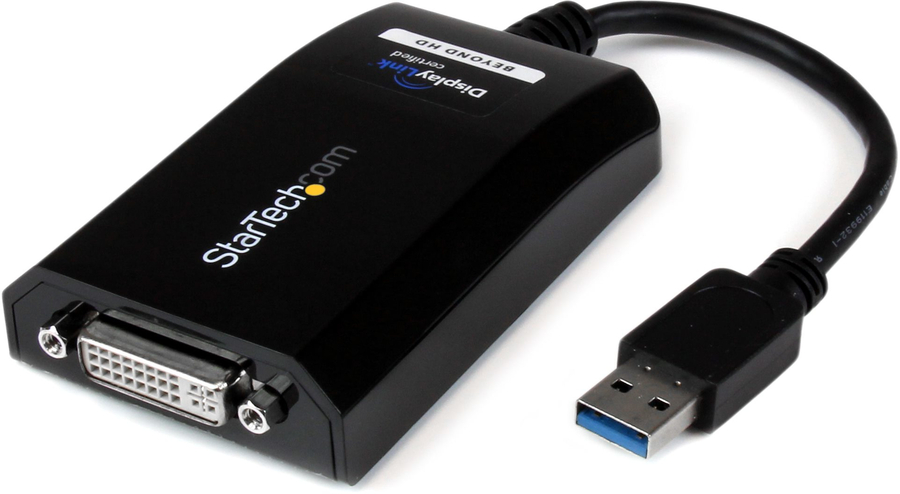

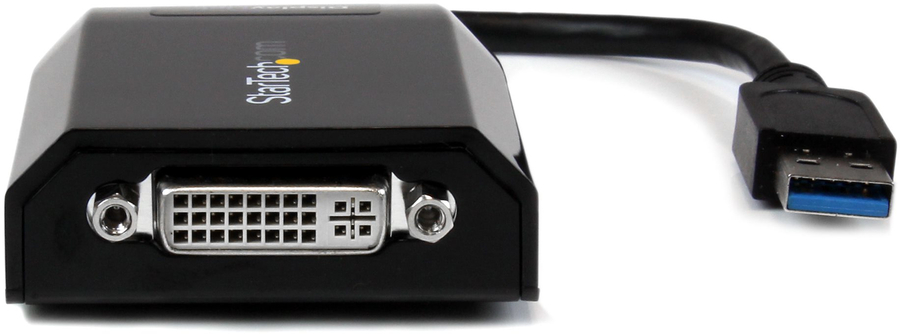

The USB32DVIPRO USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output, with high resolution 2048x1152 video support - a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

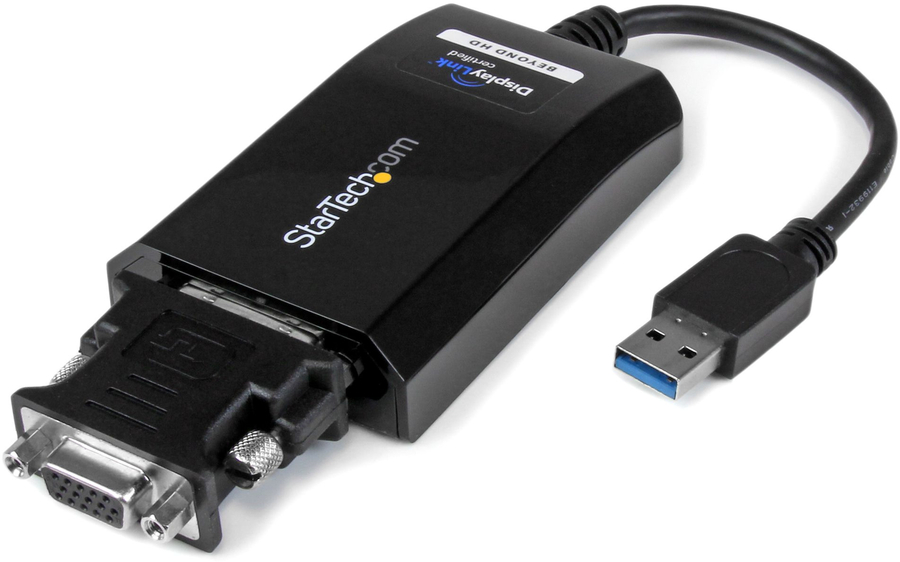

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter functions as a external graphics card to deliver smooth, high-resolution content to your DVI or VGA-capable display (DVI to VGA Adapter included). The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
The StarTech.com Advantage
- SuperSpeed USB 3.0 to DVI conversion provides added bandwidth, for smooth high-resolution video content
- External USB-Powered device provides the simplest way to add additional graphics capability to your system, without opening the case or voiding system warranties |
|
Performance |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
|
DVI output |
Yes |
|
HDMI output |
No |
|
DisplayPort output |
No |
|
Number of displays supported |
1 |
|
USB connector type |
USB Type-A |
|
USB connector gender |
Male |
|
DVI connector type |
DVI-I |
|
Internal memory |
512 MB |
|
Maximum resolution |
2048 x 1152 pixels |
|
Supported graphics resolutions |
1280 x 800, 1366 x 768, 2048 x 1152, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
|
Chipset |
DisplayLink - DL-3100 |
|
USB pass-through |
No |
|
Certification |
CE, FCC, REACH |
|
Design |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Integrated USB cable |
Yes |
|
USB cable length |
0.152 m |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
|
Linux operating systems supported |
Ubuntu 14.04, Ubuntu 16.04 |
|
Other operating systems supported |
ChromeOS |
|
Minimum processor family |
Core i5 |
|
Minimum processor speed |
2.4 GHz |
|
Minimum RAM |
4.1 TB |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 40 °C |
|
Storage temperature (T-T) |
-10 - 80 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Weight & dimensions |
|
Width |
43.5 mm |
|
Depth |
78 mm |
|
Height |
16 mm |
|
Weight |
91 g |
|
Package width |
144 mm |
|
Package depth |
171 mm |
|
Package height |
30 mm |
|
Package weight |
211 g |
|

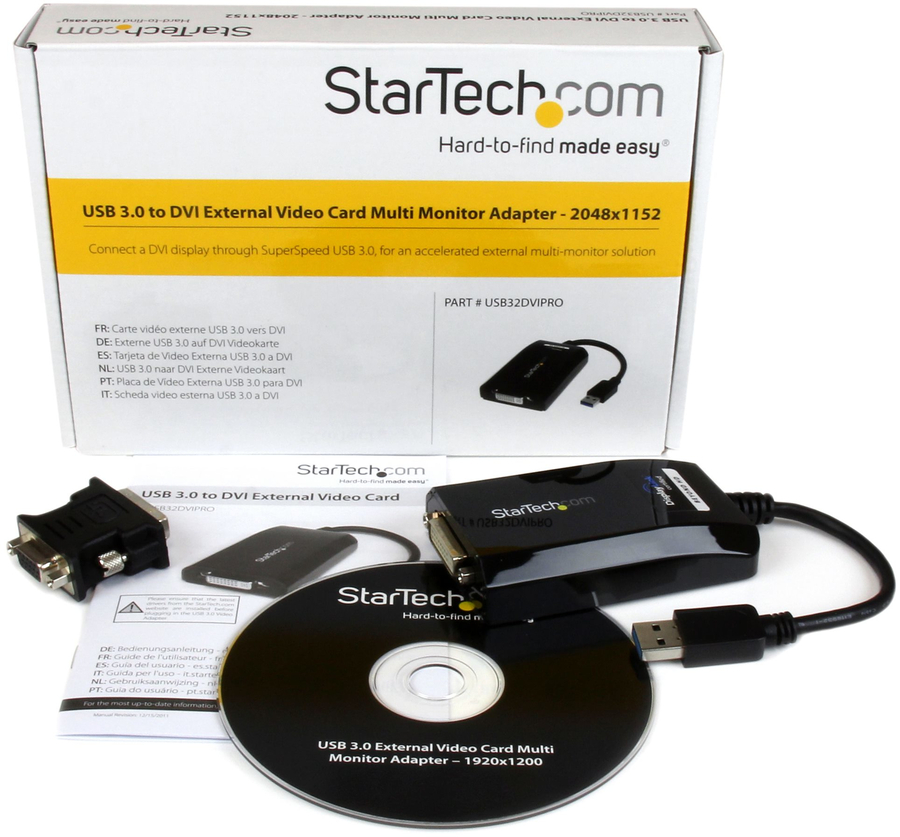

Packaging content |
|
Quick installation guide |
Yes |
|
Drivers included |
Yes |
|
Interface adapters included |

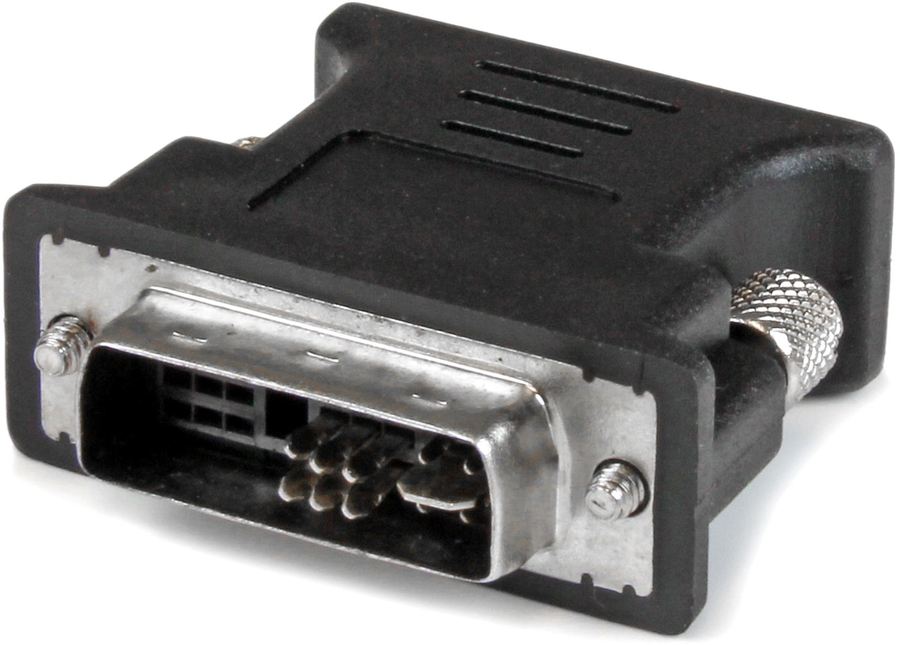

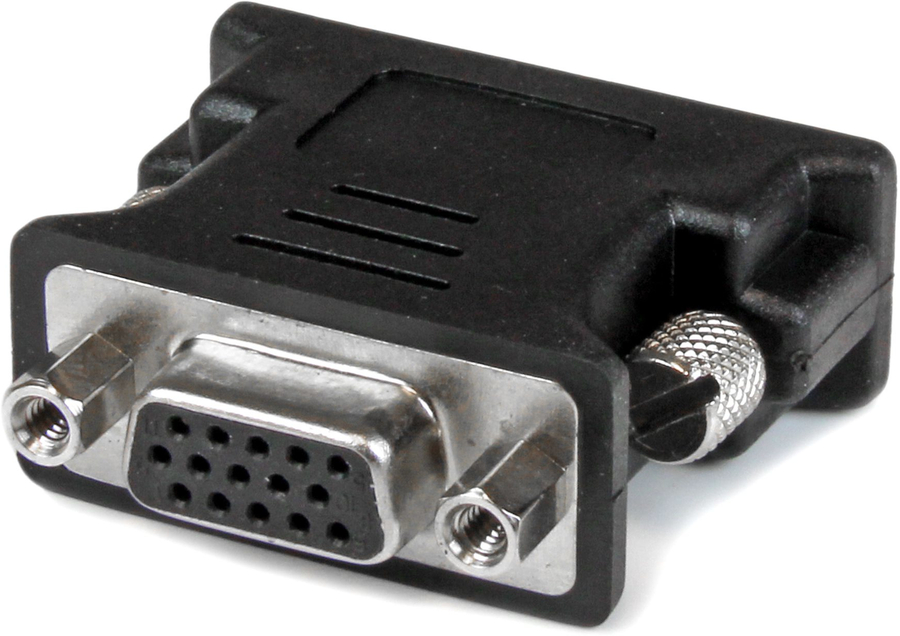

DVI-I male - VGA female |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
40 pc(s) |
|
Master (outer) case width |
430 mm |
|
Master (outer) case length |
430 mm |
|
Master (outer) case height |
330 mm |
|
Harmonized System (HS) code |
84733020 |
|
