General Information |
|
Summary |
Connect a DVI-D device to an HDMI®-enabled device using a standard HDMI cable

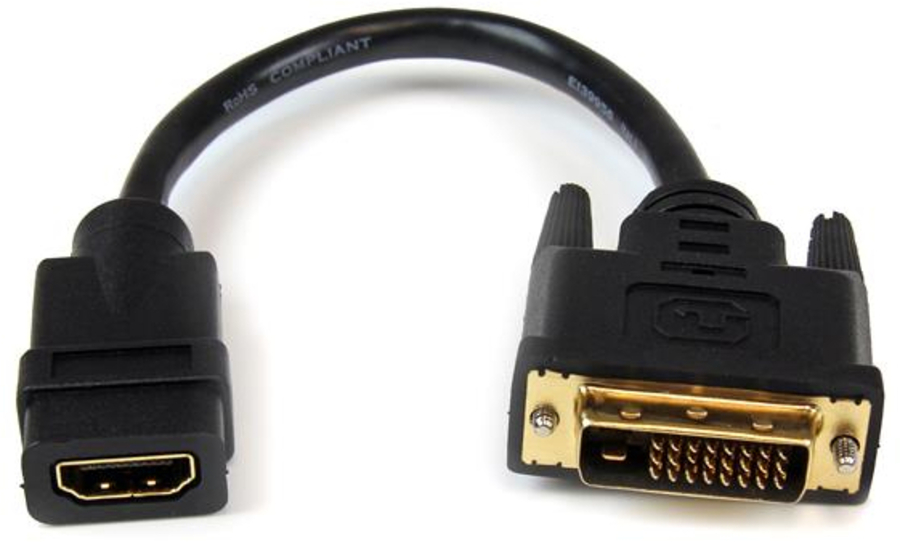

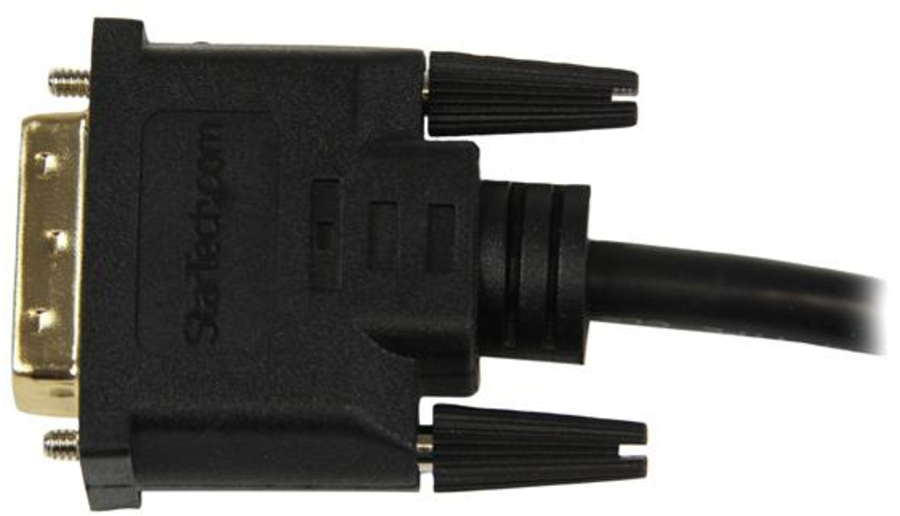

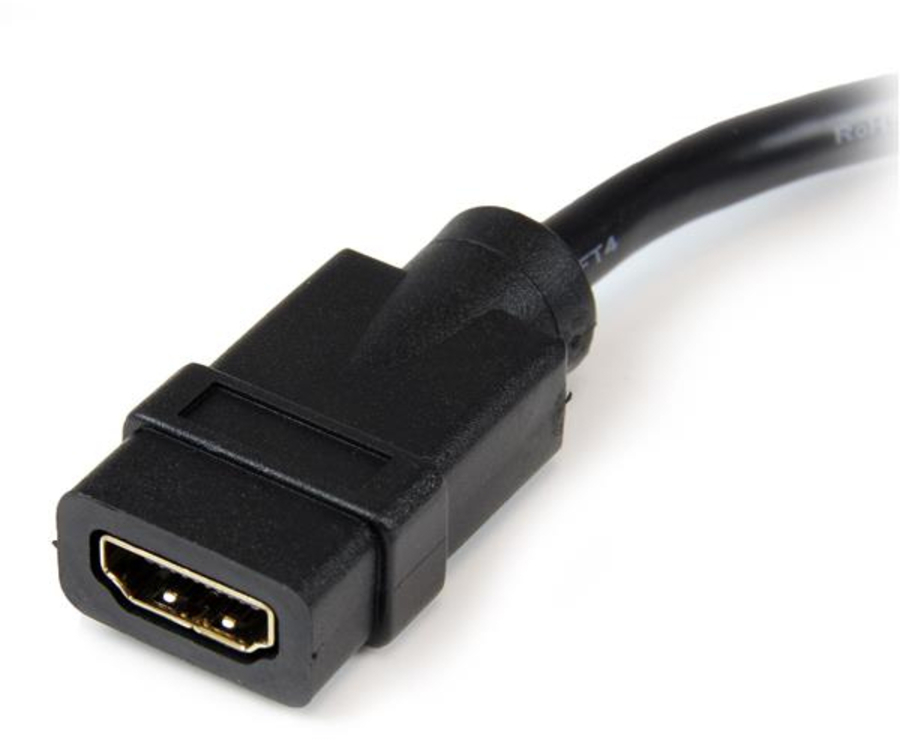

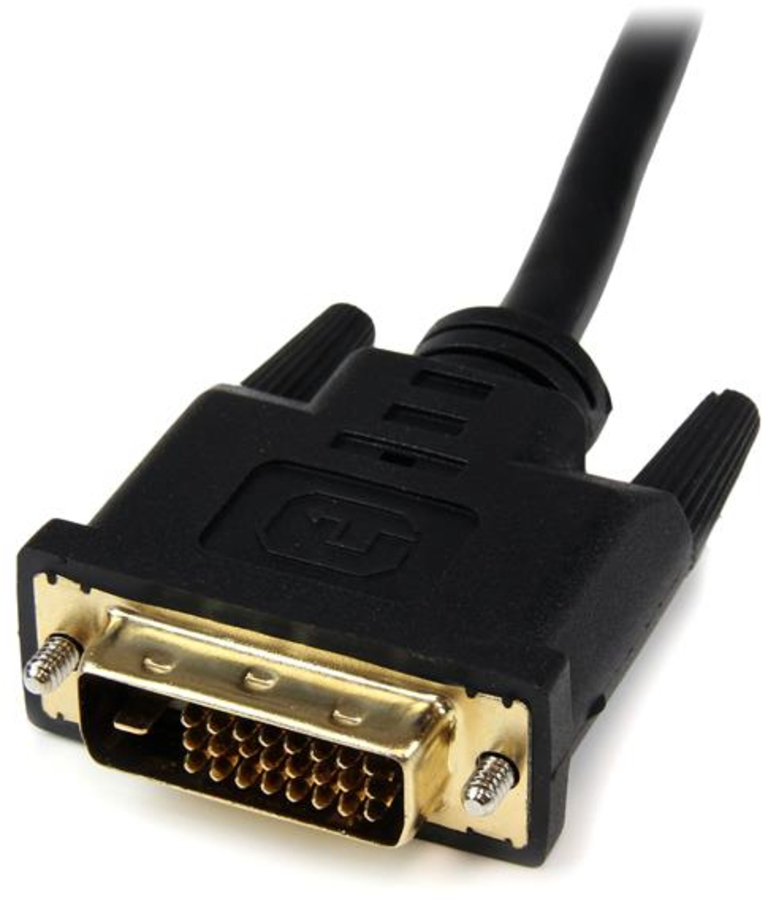

The HDDVIFM8IN HDMI® to DVI-D Video Adapter Cable features one HDMI female connector and one DVI-D male connector, which enables a bi-directional connection between HDMI-capable devices and DVI-D capable devices to overcome compatibility issues.
The HDMI to DVI dongle is 8-inches long (end-to-end), which lessens strain on the connectors and prevents damage to the cable while also reducing the potential of blocking other nearby ports.
Designed and constructed to provide a dependable HDMI to DVI connection, this high quality cable is backed by StarTech.com's Lifetime Warranty. |
|
Features |
|
Cable length |
0.203 m |
|
Connector 1 |
HDMI Type A (Standard) |
|
Connector 2 |
DVI-D |
|
Connector 1 gender |
Female |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector contacts plating |
Gold |
|
Maximum resolution |
1920 x 1200 pixels |
|
Product colour |
Black |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
AWG wire size |
28 |
|
Converter type |
Passive video converter |
|
Cable shielding |
Aluminium mylar foil |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
RoHS |
|
Weight & dimensions |
|
Weight |
32 g |
|
Width |
20 mm |
|
Depth |
203.2 mm |
|
Height |
10 mm |
|
Packaging data |
|
Package width |
127 mm |
|
Package depth |
127 mm |
|
Package height |
18 mm |
|
Package weight |
37 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
393 mm |
|
Master (outer) case length |
457 mm |
|
Master (outer) case height |
294 mm |
|
Products per master (outer) case |
200 pc(s) |
