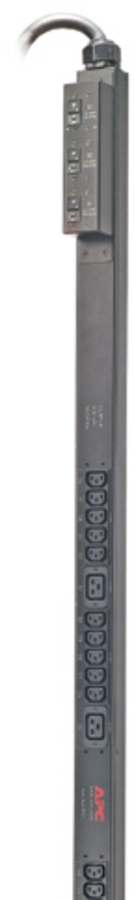

APC Basic Rack PDU
|
|
Regularly: $1236.00
On Sale: $1198.92
Sale Ends:
November 16th, 2025
Manufacturer:
APC
Rack PDU,Basic,Zero U,12.5kW,208V,(30)C13,(6)C19;3' Cord
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
90712
|
AP7568
|
731304226833 |
Active
|
Details
|
General Information |
|
Summary |
-Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
-Multi-branch power input.
-Toolless mounting capability.
-Vertical mounting capability. |
|
Design |
|
Product colour |
Black |
|
Ports & interfaces |
|
Input connection type |

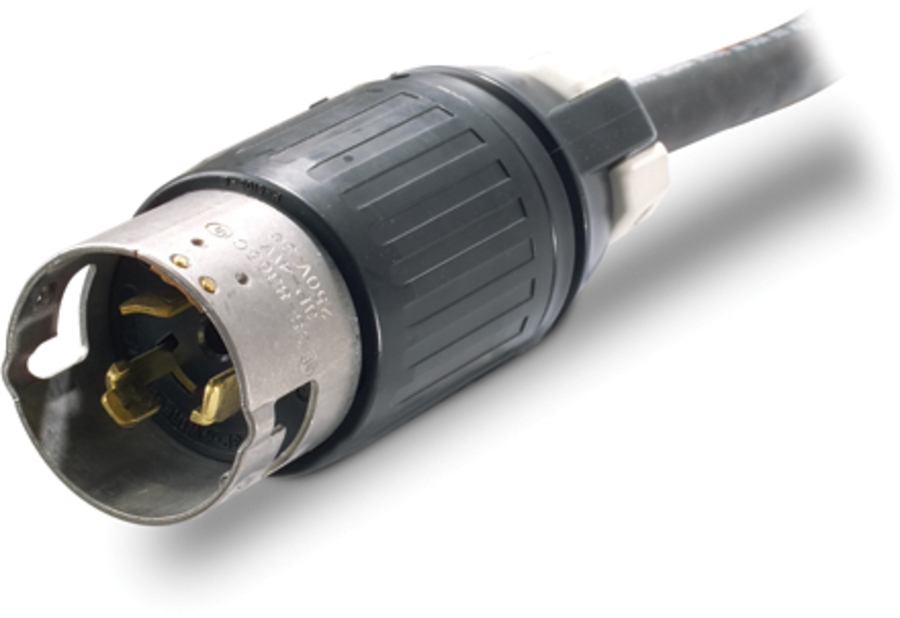

Hubbell CS8365C |
|
Output connections |

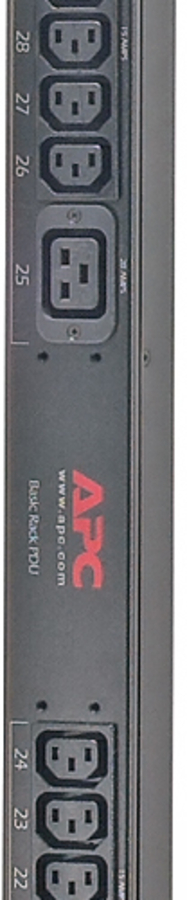

-(30) IEC 320 C13.
-(6) IEC 320 C19. |
|
Features |
|
Cable length |
0.91 m |
|
Power |
|
Nominal input voltage |
208 V |
|
Nominal output voltage |
208 V |
|
Load capacity |
12500 VA |
|
Maximum input current per phase |
35 A |
|
Maximum total current draw per phase |
35 A |
|
Certificates |
|
Certification |
cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 45 °C |
|
Storage temperature (T-T) |
-25 - 65 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
56 mm |
|
Depth |
89 mm |
|
Height |
1778 mm |
|
Weight |
6.95 kg |
|
