General Information |
|
Summary |

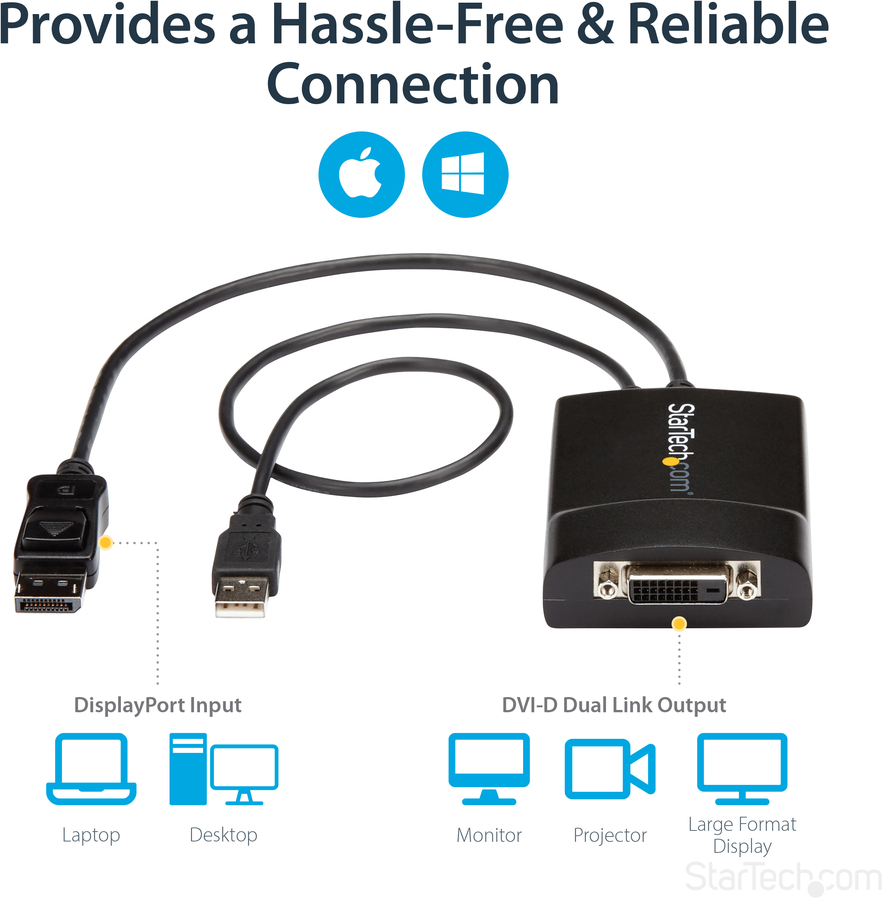

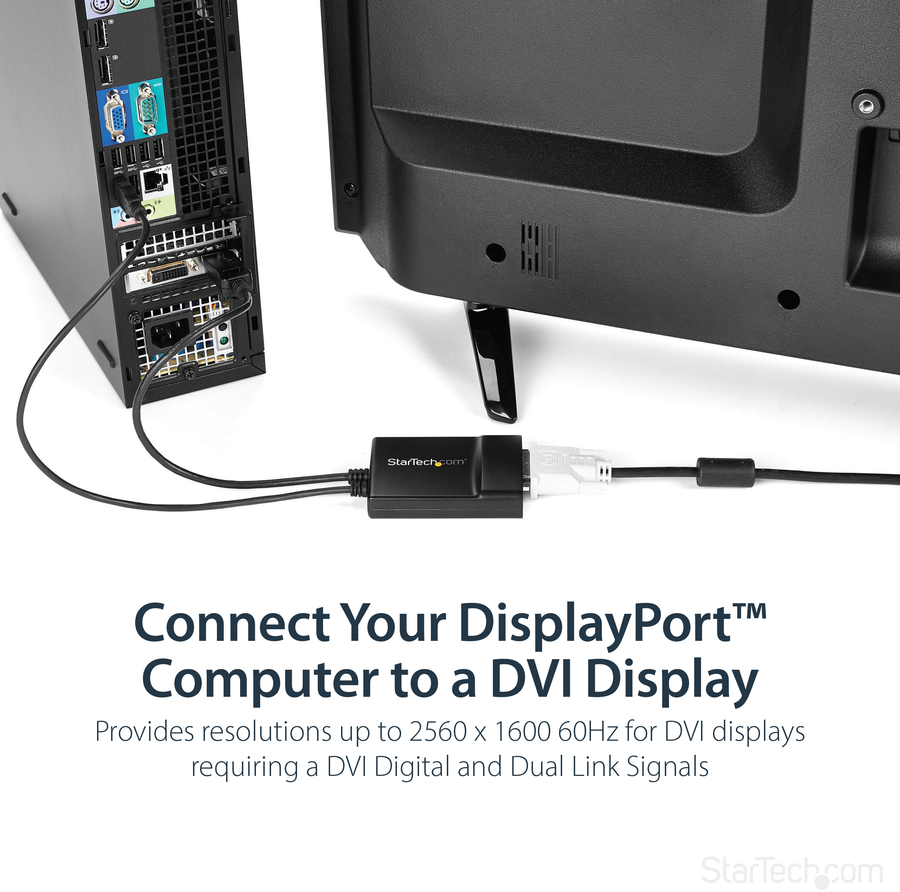

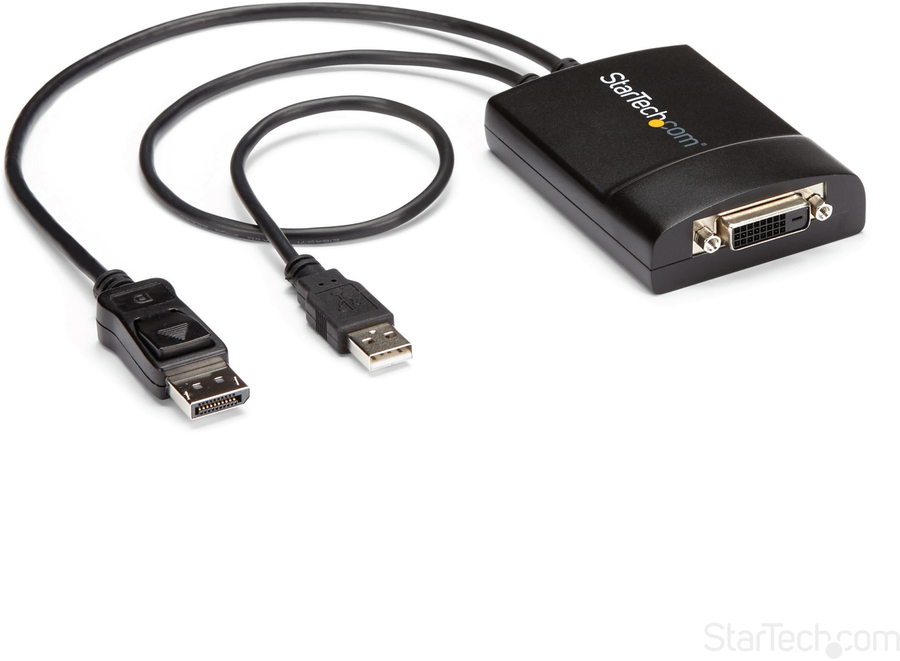

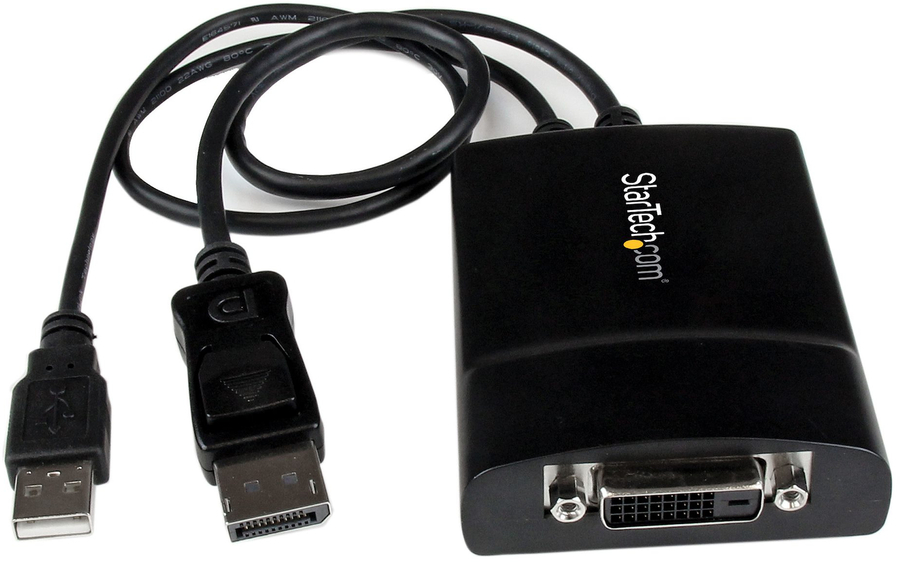

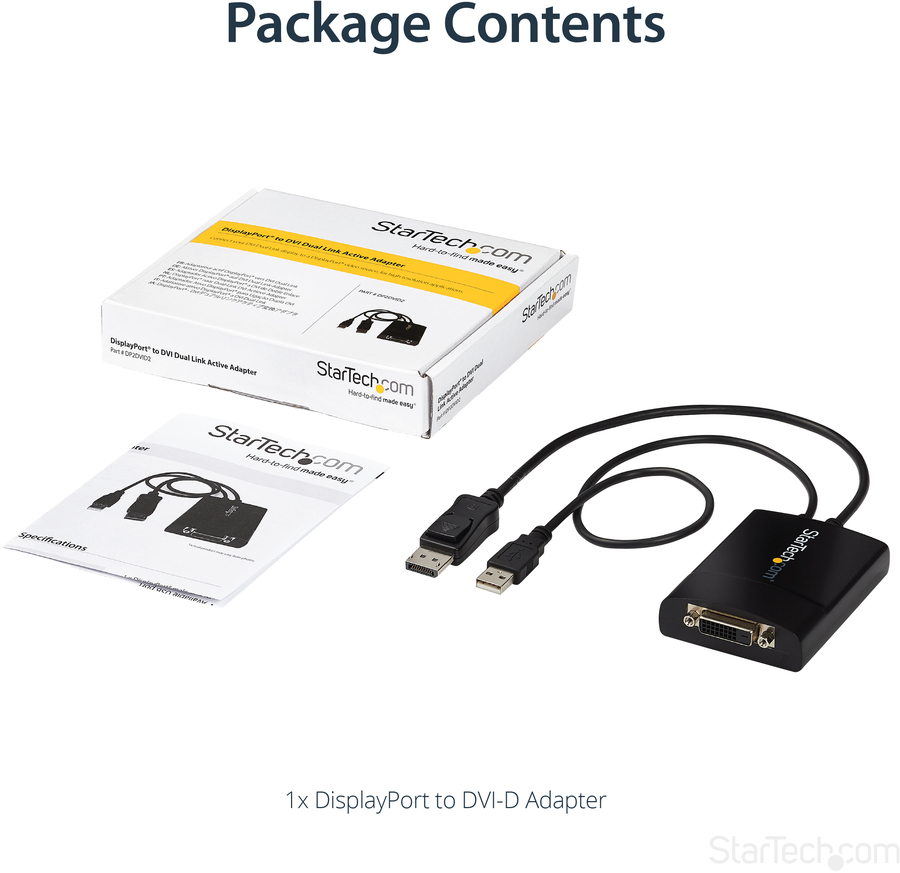

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applicationsThe DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.Back by StarTech.com 3-year warranty, with free lifetime technical support.The StarTech.com Advantage |
|
Features |
|
Cable length |
0.37 m |
|
Connector 1 |

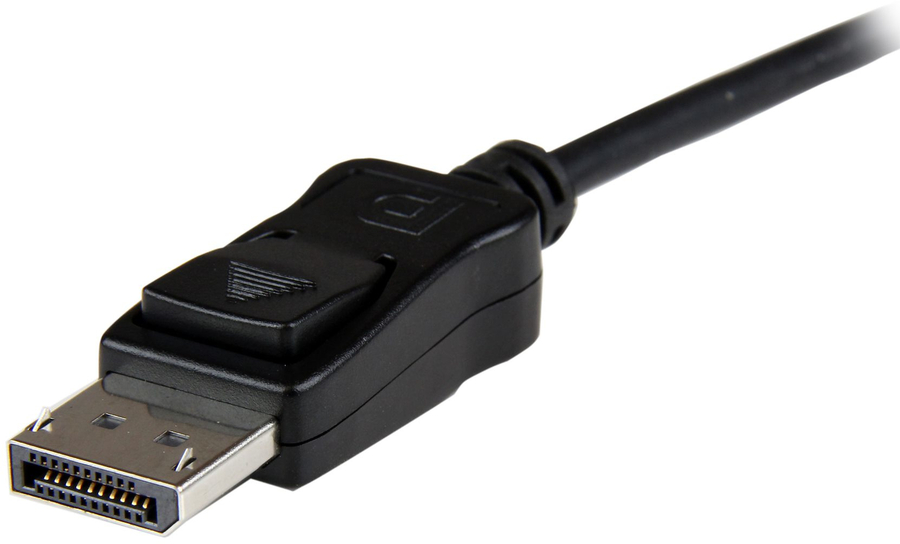

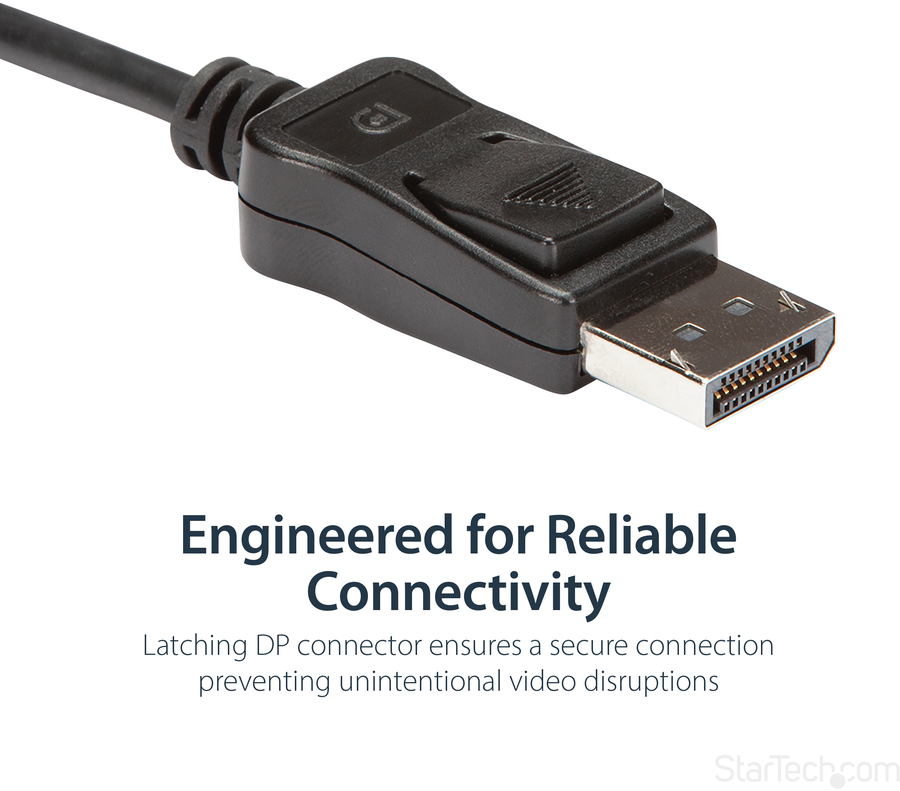

DisplayPort |
|
Connector 2 |

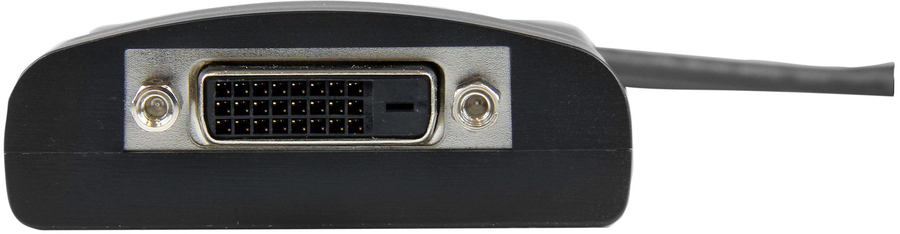

DVI-D |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Power source |

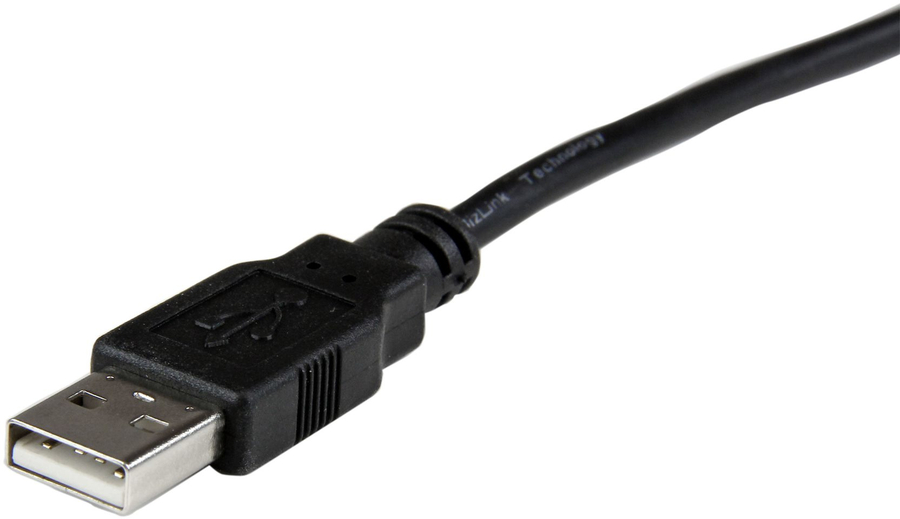

USB |
|
HDCP |
Yes |
|
DisplayPort version |
1.2 |
|
Dual Link DVI |
Yes |
|
Maximum resolution |
2560 x 1600 pixels |
|
Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
|
Maximum refresh rate |
120 Hz |
|
HBR2 support |
Yes |
|
Product colour |
Black |
|
Converter type |
Active video converter |
|
Certification |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Sustainability |
|
Sustainability certificates |
CE, RoHS |
|
Weight & dimensions |
|
Weight |
160 g |
|
Width |
64 mm |
|
Depth |
549 mm |
|
Height |
22 mm |
|
Packaging data |
|
Package width |
174 mm |
|
Package depth |
143 mm |
|
Package height |
35 mm |
|
Package weight |
232 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
337 mm |
|
Master (outer) case length |
497 mm |
|
Master (outer) case height |
220 mm |
|
Products per master (outer) case |
28 pc(s) |
