General Information |
|
Summary |

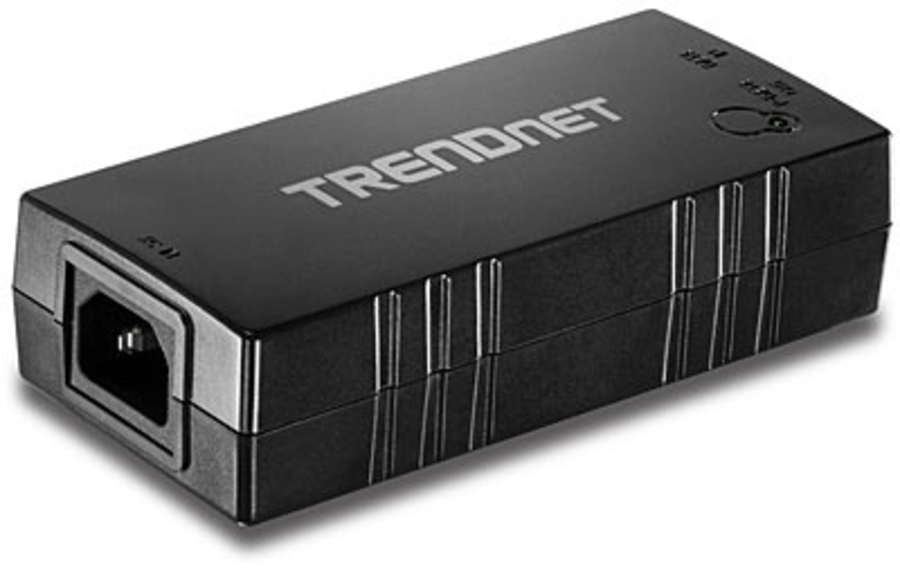

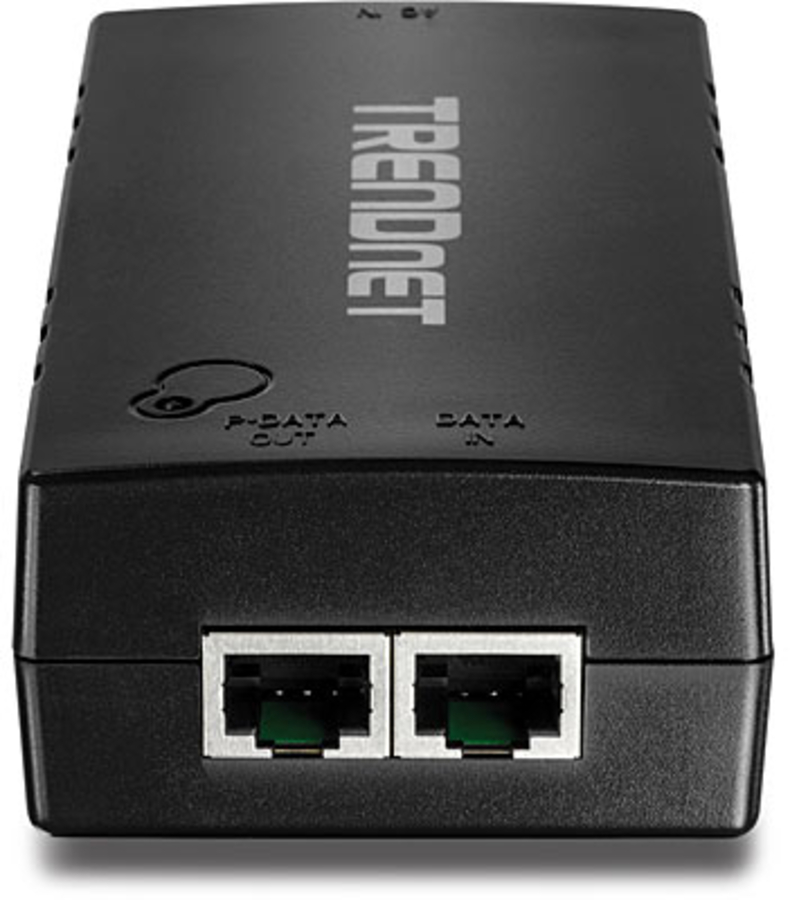

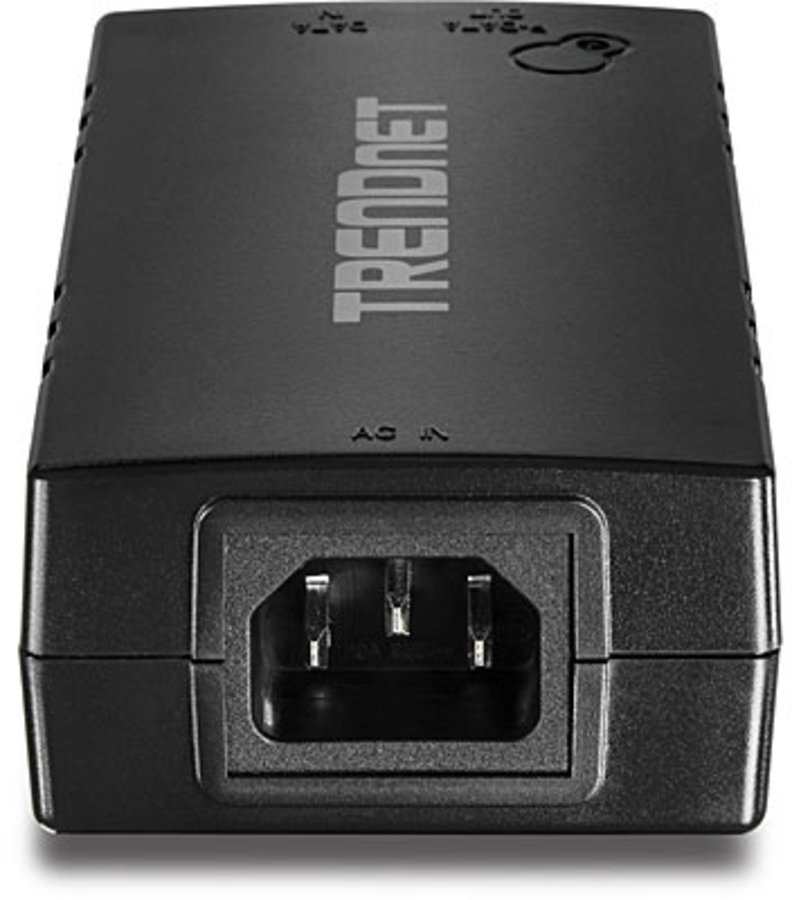

The Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE Gigabit switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.
Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. |
|
Network |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
Cat. 5/5e |
|
Power over Ethernet (PoE) |
Yes |
|
Features |
|
LED indicators |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
Power |
|
AC adapter input voltage |
100 - 240 V |
|
AC adapter frequency |
50/60 Hz |
|
Input current |
0.65 A |
|
Power consumption (typical) |
30 W |
|
Certificates |
|
Compliance industry standards |
IEEE 802.3/802.3u/802.3ab/802.3at/802.3af |
|
Certification |
CE, FCC |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Weight & dimensions |
|
Weight |
162 g |
|
Logistics data |
|
Harmonized System (HS) code |
85044095 |
