General Information |
Summary |
USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows

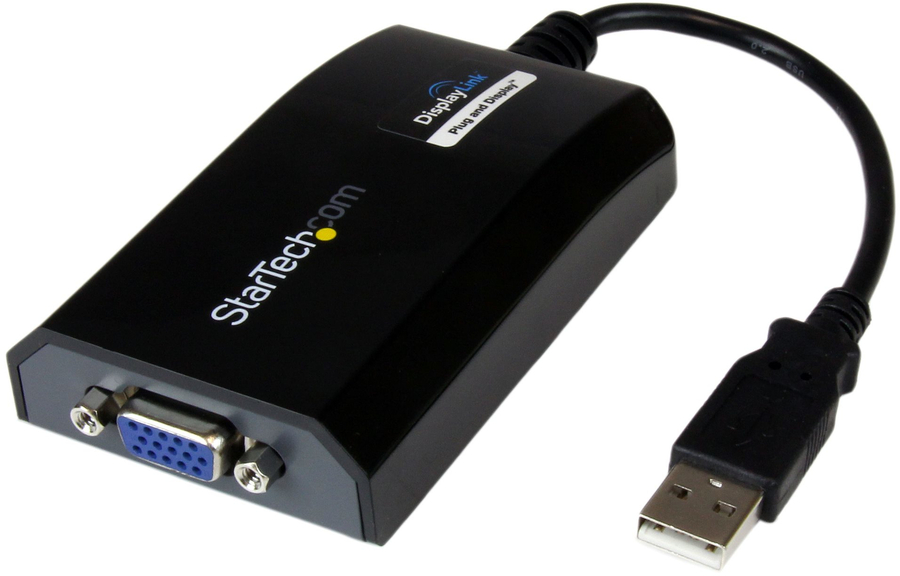

The USB2VGAPRO2 USB to VGA Adapter functions as an external graphics card for Windows and Mac computers - the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor environment, all through the simplicity and convenience of USB.
The USB-VGA Adapter delivers high quality video (up to 1920x1200) for a variety of applications and is capable of simultaneously running up to five additional displays from a single computer (using four USB2VGAPRO2 External Video Adapters). The adapter connects to a host computer through a USB 2.0 port, acting as an external VGA video card to either extend or mirror the desktop shown on the existing display - without having to open the computer case.
Featuring driver support for Microsoft Windows (including Aero themes) and Mac OS X, and with video support for resolutions up to 1920x1200, this USB-VGA video adapter is the ideal solution for a wide rade of operating environments as well as large-screen displays/monitors.
The USB2VGAPRO2 USB to VGA Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- The graphics adapter supports high-performance requirements and high resolution video, making it suitable for connecting large-screen monitors - USB-powered operation eliminates the need for an external power adapter, enabling you to position an additional monitor without having to make the extra power connection or carry an additional cable for mobile applications - Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system, which in many cases would void manufacturers' warranties |
Performance |
USB version |
2.0 |
DVI output |
No |
HDMI output |
No |
DisplayPort output |
No |
Number of displays supported |
1 |

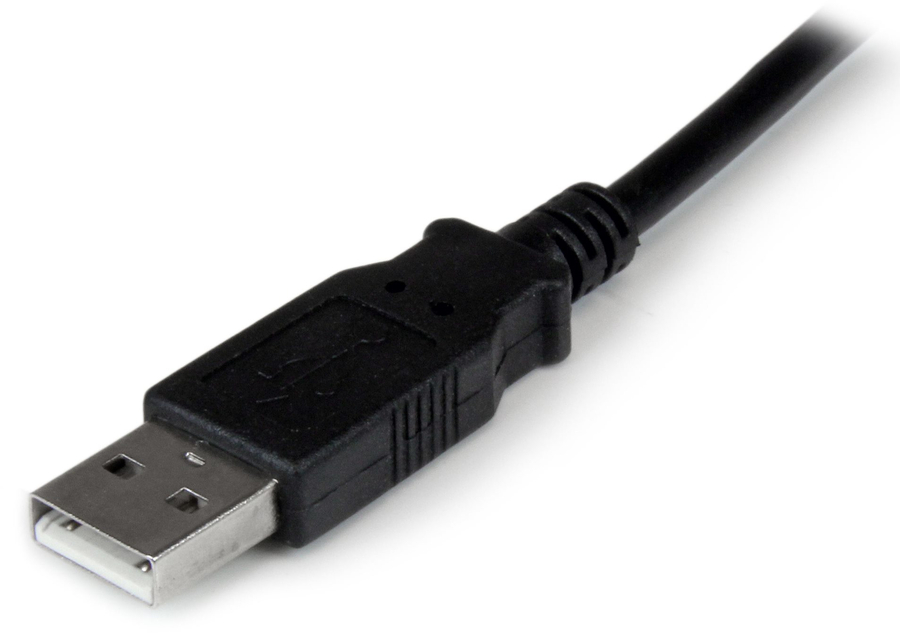

USB connector type |
USB Type-A |
USB connector gender |
Male |

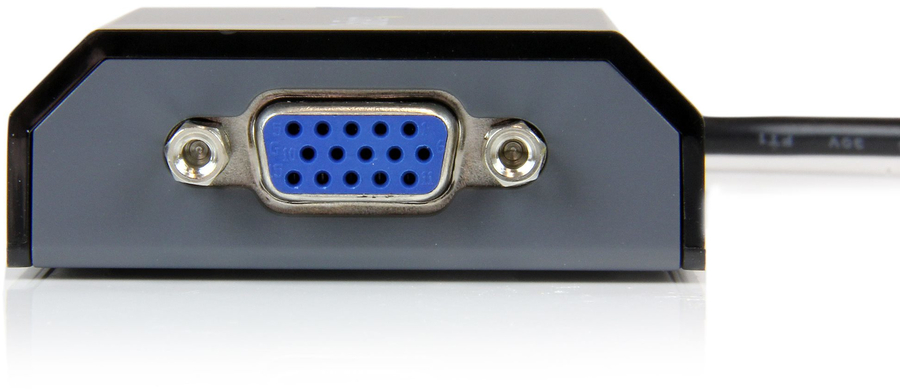

VGA (D-Sub) output |
Yes |
Internal memory |
16 MB |
Maximum resolution |
1920 x 1200 pixels |
Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA) |
Output colour depth |
16/32 bit |
LED indicators |
Power |
Chipset |
DisplayLink - DL-195 |
USB pass-through |
No |
Certification |
CE, FCC, DisplayLink, REACH |
Design |
Product colour |
Black |
Integrated USB cable |
Yes |
System requirements |
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Mac compatibility |
Yes |
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Linux operating systems supported |
Ubuntu 14.04, Ubuntu 16.04, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 |
Other operating systems supported |
ChromeOS |
Minimum processor speed |
1.2 GHz |
Minimum RAM |
0.512 GB |
Minimum storage drive space |
30 MB |
Weight & dimensions |
Width |
43.5 mm |
Depth |
78 mm |
Height |
16 mm |
Weight |
64 g |
USB cable length |
0.165 m |
Operational conditions |
Operating temperature (T-T) |
10 - 40 °C |
Storage temperature (T-T) |
-10 - 80 °C |
Operating relative humidity (H-H) |
0 - 85% |
Packaging data |
Package type |
Box |
Package width |
213 mm |
Package depth |
145 mm |
Package height |
41 mm |
Package weight |
202 g |

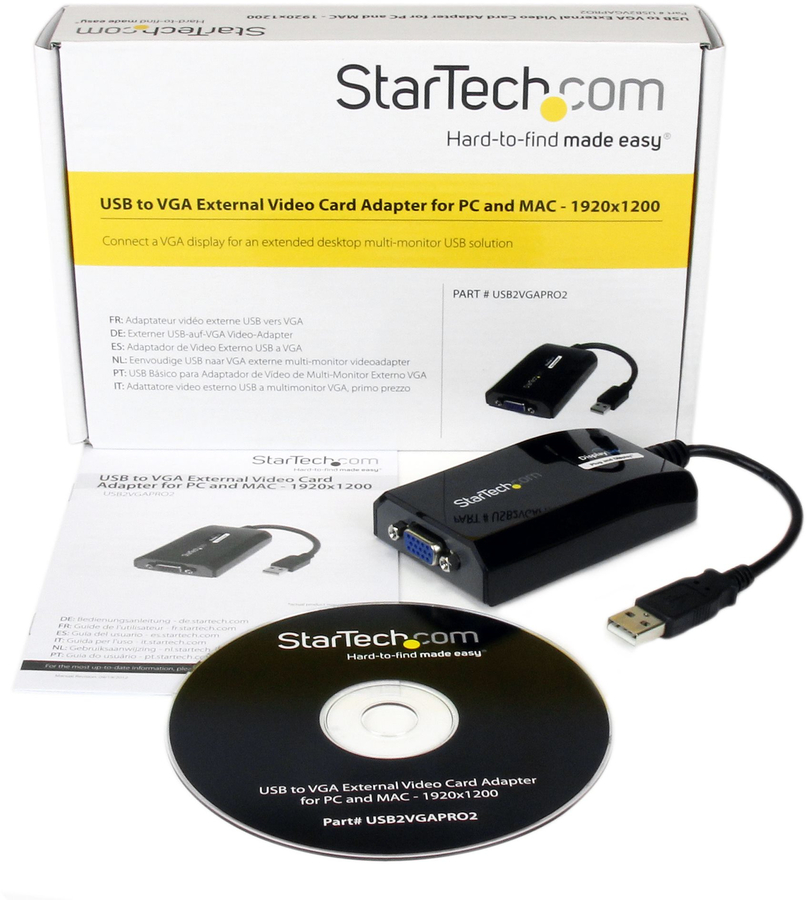

Packaging content |
Drivers included |
Yes |
Manual |
Yes |
Technical details |
Sustainability certificates |
RoHS |
Compliance certificates |
RoHS |
Logistics data |
Products per master (outer) case |
40 pc(s) |
Master (outer) case width |
429 mm |
Master (outer) case length |
434 mm |
Master (outer) case height |
323 mm |
Harmonized System (HS) code |
84733020 |
|
