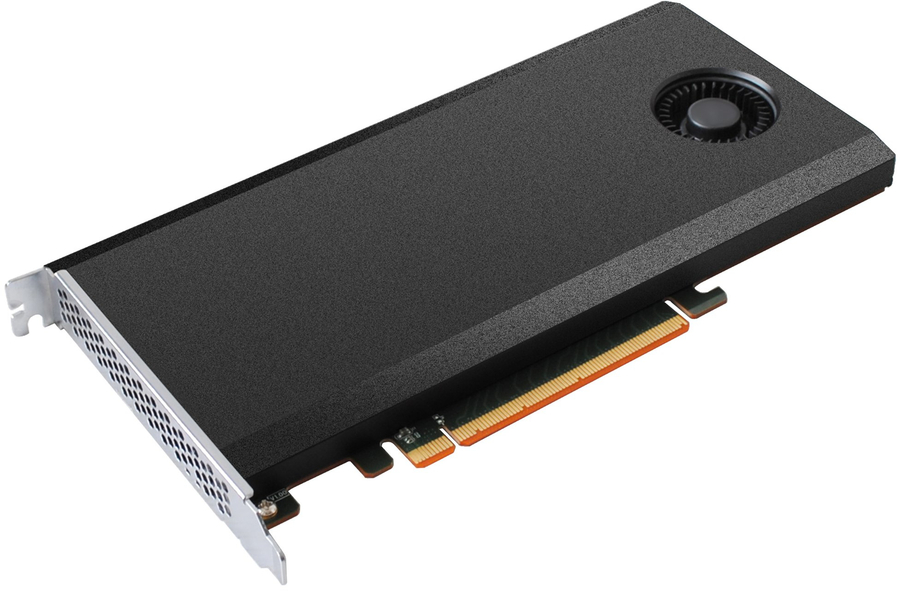

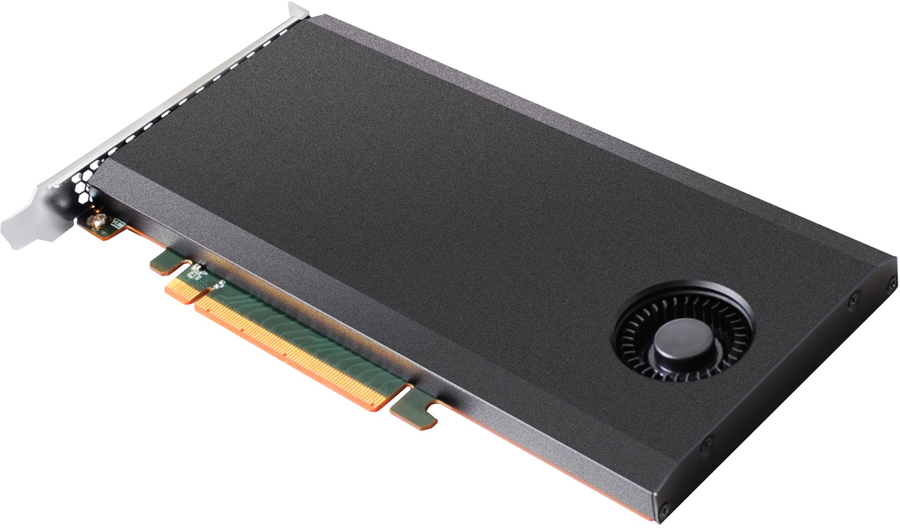

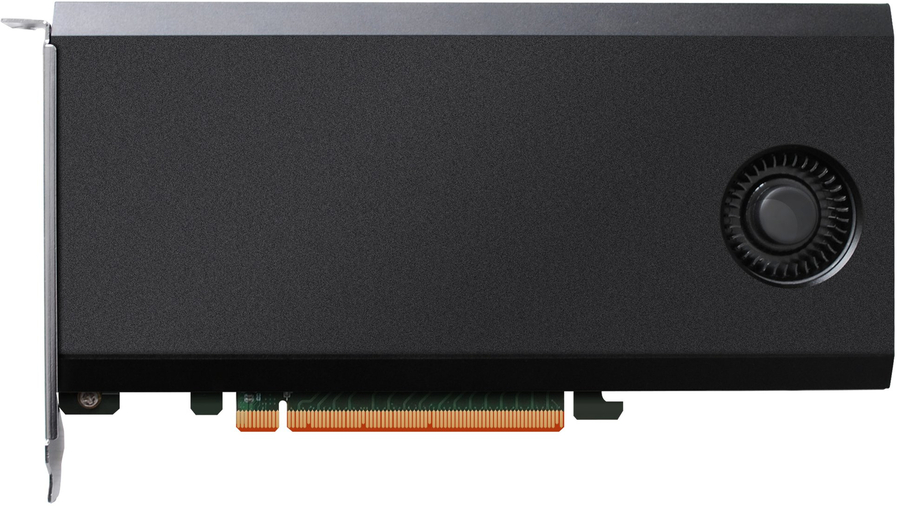

HighPoint SSD7101A-1 NVMe M.2 RAID Controller
|
|
Regularly: $627.00
On Sale: $601.92
Sale Ends:
April 26th, 2024
Manufacturer:
HighPoint
4x M.2 NVMe, RAID 0, 1, 5, 1/0, up to 25,000 MB/s
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
54499442
|
SSD7101A-1
|
643653710119 |
Active
|
Details
|
General Information |
|
Summary |
HighPoint’s SSD710x Series are the industry’s fastest PCIe Gen3 4-Port M.2 NVMe RAID controllers, and are capable of delivering up to 14,000MB/s of sustained transfer performance. The compact single-width, full-height controller cards can directly host up to four M.2 NVMe SSDs of any form factor (2242/2260/2280/22110) in one or more RAID 0, 1, 10 and JBOD configurations.
Performance-Focused Hardware NVMe Architecture
Our performance-focused NVMe hardware architecture delivers uncompromised end to end PCIe 3.0 x16 bandwidth; integrated Smart-Switching technology allocates 4x dedicated lanes for each SSD to ensure maximum transfer speed and immediate response time.
Cross-Sync RAID Technology Unleashes Groundbreaking NVMe Performance – Up to 28,000 MB/s!
HighPoint has broken new ground, and established another NVMe performance milestone for professional grade applications. The latest generation of high-performance CPU’s and motherboards can provide the PCIe 3.0 lanes required to power dual PCIe 3.0 x16 NVMe RAID controllers. Ultra-HD video projects, such as those working with raw 8K footage, require transfer performance exceeding 17,900 MB/s. Media professionals working with such hardware can now link two SSD7101A-1 NVMe RAID controllers to function as a single array, and configure RAID arrays of up to eight M.2 NVMe SSD’s to deliver up to 28,000 MB/s of transfer performance!
New for Mac Platforms - Full Fan Control
The SSD7101A-1 now features full fan control when used with Mac platforms and macOS 10.14 and later. Customers can track the temperature of each NVMe SSD using the management interface’s SHI feature (Storage Health Inspector), and select from 3 speed settings or power-off the controller’s fan for silent operation.
This feature is ideal for media and design applications that require low-noise working environments.
HighPoint NVMe Manager
Each SSD7101A-1 RAID controller includes a simple, intuitive web-based management interface designed to provide a wealth of monitoring and configuration options for novice and experts alike.
A Quick Configuration menu allows new users to get everything up and running with a few simple clicks. Experienced Pros can fine tune configurations for specific applications, monitor the health of the controller and NVMe SSD’s, and configure event notification using the Advanced Options menu.
NVMe Storage Health & Life Span Monitoring
The SSD7100 Series RAID controllers include an intuitive, web-based interface, that in addition to RAID creation and storage management, features integrated TRIM support, SMART monitoring, and total Terabyte Written (TBW) tracking – essential data points for maintaining the longevity and endurance of any NVMe storage configuration.
SMART monitoring allows you to check a variety of physical attributes for each NVMe SSD, including temperature readings, voltage and TBW in real time. |
|
Ports & interfaces |
|
Supported storage drive interfaces |
M.2 |
|
Host interface |
PCI Express x16 |
|
PCI Express slots version |
3.0 |
|
Performance |
|
RAID levels |
0, 1, 10 |
|
Data transfer rate |
8 Gbit/s |
|
SSD support |
Yes |
|
JBOD function |
Yes |
|
Channels quantity |
4 channels |
|
Mean time between failures (MTBF) |
920585 h |
|
Certification |
FCC, CE, RoHS, REACH, WEE |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 11 |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur |
|
Linux operating systems supported |
Kernel 3.12 |
|
Compatible operating systems |
Windows 10, Windows Server 2012 R2 or later
Linux Kernel 3.10 or later
macOS 10.13 and later |
|
Server operating systems supported |
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 55 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Weight & dimensions |
|
Width |
211 mm |
|
Depth |
17 mm |
|
Height |
111 mm |
|
Weight |
660 g |
|
Package width |
70 mm |
|

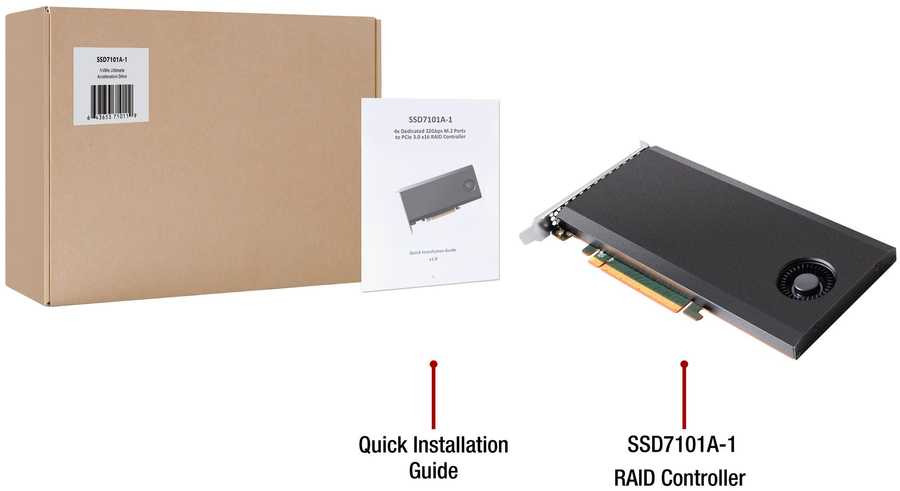

Packaging content |
1x -SSD7101A-1 RAID Controller
1x Quick Installation Guide |
|
Package depth |
340 mm |
|
Package height |
195 mm |
|
Package weight |
585 g |
|
