Aten 328-Foot 4-port USB 2.0 CAT 5 Extender
|
|
Regularly: $549.00
On Sale: $527.04
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
4-port USB 2.0 CAT 5 Extender (100m)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
55871550
|
UCE32100
|
- |
Active
|
Details
|
General Information |
|
Summary |

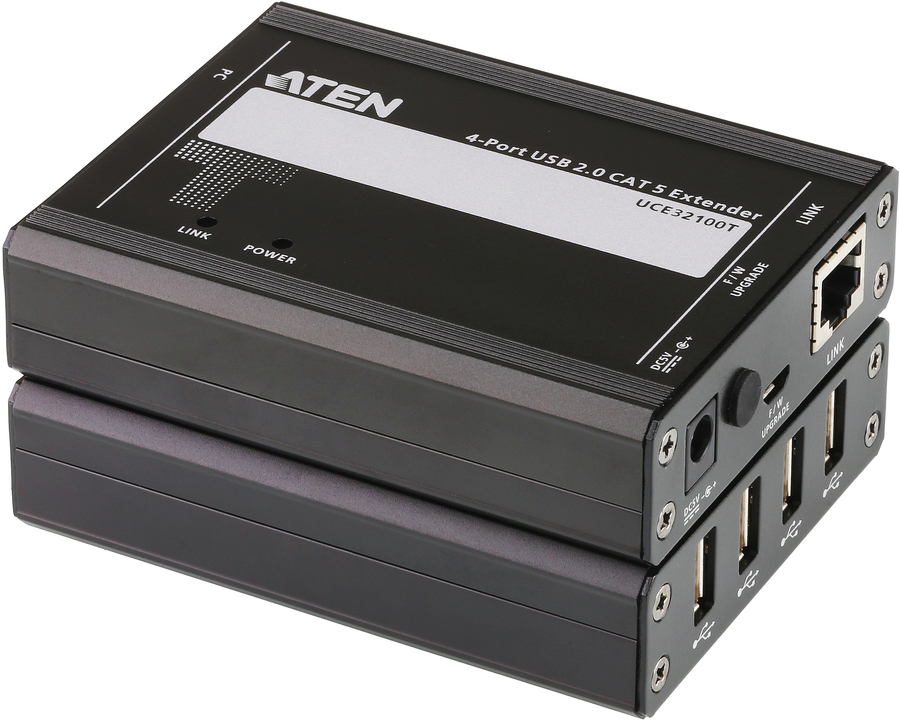

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation. |
|
Technical details |
|
Type |
Console transmitter & receiver |
|
Data transfer rate |
25 Mbit/s |
|
Ethernet LAN |
Yes |
|
Maximum transfer distance |
100 m |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Cable types supported |
Cat5 |
|
Ports & interfaces |
|
USB 2.0 Type-A ports quantity |
4 |
|
USB 2.0 Type-B ports quantity |
1 |
|
RJ-45 ports quantity |
1 |
|
Weight & dimensions |
|
Width |
79 mm |
|
Depth |
101.5 mm |
|
Height |
24.4 mm |
|
Weight |
210 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Packaging content |
|
Cables included |
AC, USB |
|
Mounting kit |
Yes |
|
Manual |
Yes |
|
AC adapter included |
Yes |
|
Power |
|
Power source type |
DC |
|
Input voltage |
5 V |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
