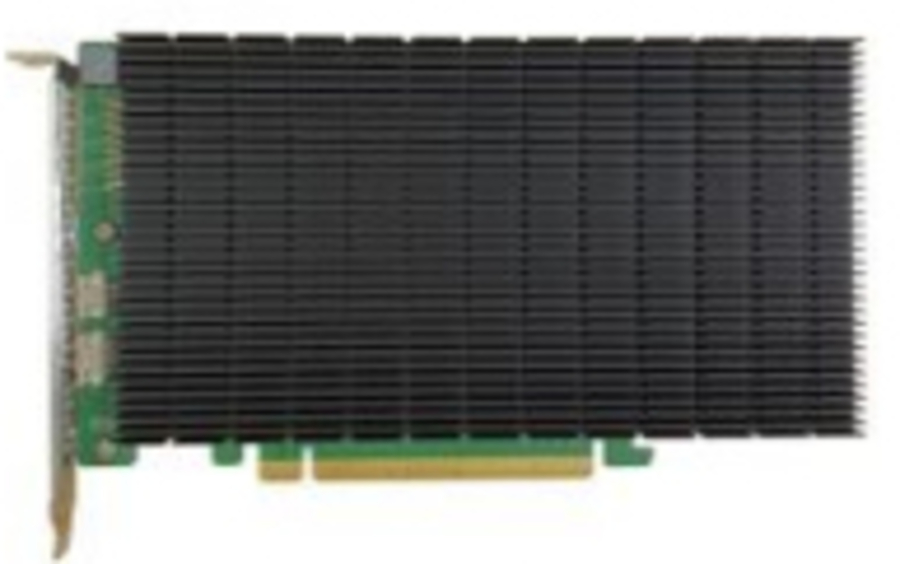

HighPoint SSD7104 PCIe 3.0 x16 4-Channel M.2 NVMe RAID Controller
|
|
Price: $600.00
Manufacturer:
HighPoint
4xM.2, 0/1 RAID, 28 Gbit/s, 12V
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
56717417
|
SSD7104
|
643653710423 |
Active
|
Details
|
General Information |
|
Summary |
Unbeatable Storage Performance
The SSD7104 features our next-gen PCB architecture and industry proven NVMe RAID technology to deliver up to 14,000 MB’s of performance from just four off-the-shelf M.2 drives! The compact controller card is no larger than your average GPU, and directly hosts up to 4 M.2 NVMe SSD's of any form factor(2242/2260/2280/22110). The SSD7104 is our first x16 RAID controller to employ our innovative fanless, zero-noise cooling system, which is ideal for media applications that require a quite, controlled working environment, and ensures critical NVMe components and the M.2 SSD's remain cool even under sustained load.
Truly Platform Independent NVMe RAID Solution
HighPoint high port count series NVMe RAID controllers are truly independent NVMe storage solutions. Unlike most NVMe devices in today’s marketplace, which are tied to a specific hardware platform or brand of SSD or motherboard, SSD7000 series controllers do not require a hardware environment with Bifurcation support, or any specialized software released by SSD manufacturers; they can be easily integrated into an AMD or Intel motherboard with a dedicated PCIe 3.0 or 4.0 x16 slot
Performance-Focused NVMe Architecture
The SSD7104 benefits from the latest generation of our industry proven, performance-focused NVMe hardware architecture. Designed to deliver uncompromised end to end PCIe 3.0 x16 bandwidth, the integrated Smart-Switching technology allocates 4x dedicated lanes for each SSD to ensure maximum transfer speed and immediate response time.
Cross Sync RAID Technology
- HighPoint’s revolutionary Cross-Sync NVMe RAID Technology can dramatically boost performance and storage capacity.
- Customers can easily link two SSD7104 controllers to act as a single storage device.
- A single RAID controller can support up to 8TB of storage and 14,000MB/s of transfer speed.
- Cross-Sync technology doubles capacity to 16TB while delivering transfer performance up to 28,000MB/s!
Interested in an SRD7104 or CRD7104 RAID Drive?
HighPoint is now shipping pre-configured, out of the box ready NVMe RAID storage, with little to no markup! HighPoint FnL NVMe RAID AIC Drives deliver unbeatable performance and massive storage capacity with hassle-free installation at the industry’s most affordable price points.
Distraction-Free, Zero-Noise Cooling Solution
The SSD7104 is ideal for high-performance media applications that require a distraction free work environment. The SSD7104 can operate in complete silence, thanks to its full-length black anodized aluminum heat sink and ventilated full-height bracket, which work in conjunction to dissipate waste heat away from critical NVMe chipset componentry and the four hosted M.2 NVMe SSD’s.
Comprehensive OS Platform Support
- Linux Distributions: A dedicated team of engineers proactively monitors and updates support for all major Linux distributions to ensure our high port count NVME RAID controllers are compatible with the latest releases of CentOS, Ubuntu and Debian. Our innovative Auto-Compile feature was designed to streamline Linux installation and upgrade procedures, and eliminates the need for user intervention. Auto Compile is now embedded directly into our open-source driver packages. In addition, each driver release is accompanied by a comprehensive Installation Guide, which includes step-by-step setup walk-throughs, handy troubleshooting tips, and Technical Support resources.
- macOS Ready: The 2019 Mac Pro is the platform of choice for many media professionals. The SSD7104 NVMe RAID controller is fully compatible with Apple’s latest Mac Pro workstation platform, and is macOS 10.15.x ready.
- Windows Platforms: Like the entire SSD7000 series product family, the SSD7104 is fully compliant with current Windows operating systems including Windows 10 and Server 2019.
Comprehensive NVMe RAID Management - Your Choice – Graphical or Text-only interfaces
When it comes to maintaining critical storage configurations, each customer has specific needs and preferences. Both management interfaces share universal layouts across all major operating systems, and can be administered locally or remotely via an internet connection. The Web RAID Management Interface (WebGUI) is a simple, intuitive web-based management tool and is ideal for customers who are new to RAID technology. The CLI (command line interface) is a powerful, text-only management interface designed for advanced users and professional administrators. Comprehensive user guides are available for both interfaces are available from each controller’s Software Updates webpage. Both interfaces were designed to streamline NVMe Storage Management. Customers can easily track TBW (Terabytes Written) and the temperature of each individual NVMe SSD, ensure the SSD7104 controller is using the fastest available PCIe slot, configure an event log with email notification, and monitor the status of critical RAID configurations in person or remotely via an internet connection.
HighPoint Certified Accessories
We manufacture a selection of certified accessories for our SSD7000 series NVMe RAID controllers. HighPoint Certified accessories are fully compliant with all current technology standards and have been rigorously tested with our SSD7000 series controllers to ensure maximum transfer performance, secure connectivity, and ease of integration. As we cannot guarantee secure connectivity, stability or compatibility with unqualified third-party devices or accessories, only HighPoint Certified accessoriescan be used with our storage products and solutions. |
|
Ports & interfaces |
|
Supported storage drive interfaces |
M.2 |
|
Host interface |
PCI Express x16 |
|
PCI Express slots version |
3.0 |
|
Performance |
|
RAID levels |
0, 1 |
|
Data transfer rate |
14 Gbit/s |
|
S.M.A.R.T. support |
Yes |
|
Number of devices supported |
4 |
|
Mean time between failures (MTBF) |
920585 h |
|
Certification |
CE, FCC, RoHS, REACH, WEEE |
|
System requirements |
|
Windows operating systems supported |
Windows 10 |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.13 High Sierra |
|
Linux operating systems supported |
Kernel 3.12 |
|
Server operating systems supported |
Windows Server 2016 |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 55 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Weight & dimensions |
|
Width |
195 mm |
|
Depth |
20.5 mm |
|
Height |
112 mm |
|
Weight |
600 g |
|
