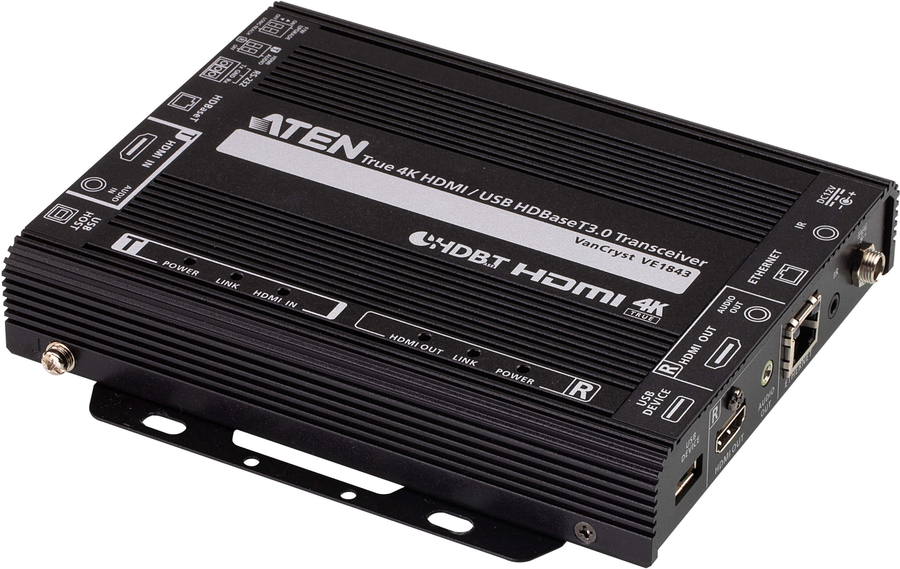

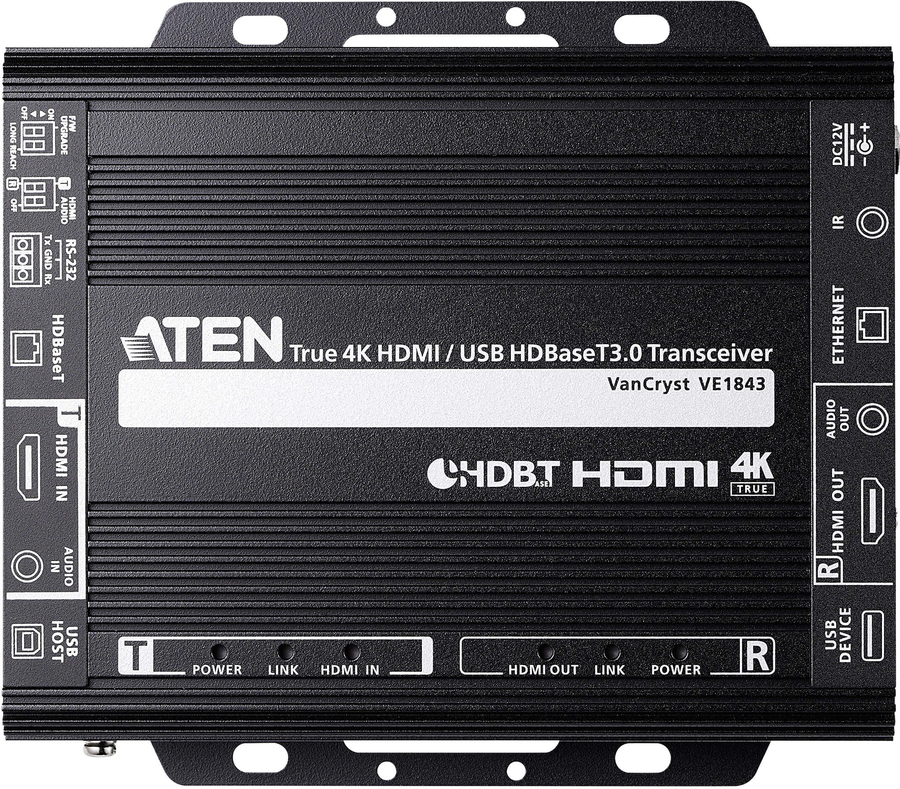

Aten VE1843 True 4K HDMI / USB HDBaseT 3.0 Transceiver
|
|
Regularly: $702.00
On Sale: $673.92
Sale Ends:
April 26th, 2024
Manufacturer:
Aten
True 4K HDMI / USB HDBaseT 3.0 Transceiver
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
57582482
|
VE1843
|
672792013072 |
Active
|
Details
|
General Information |
|
Summary |

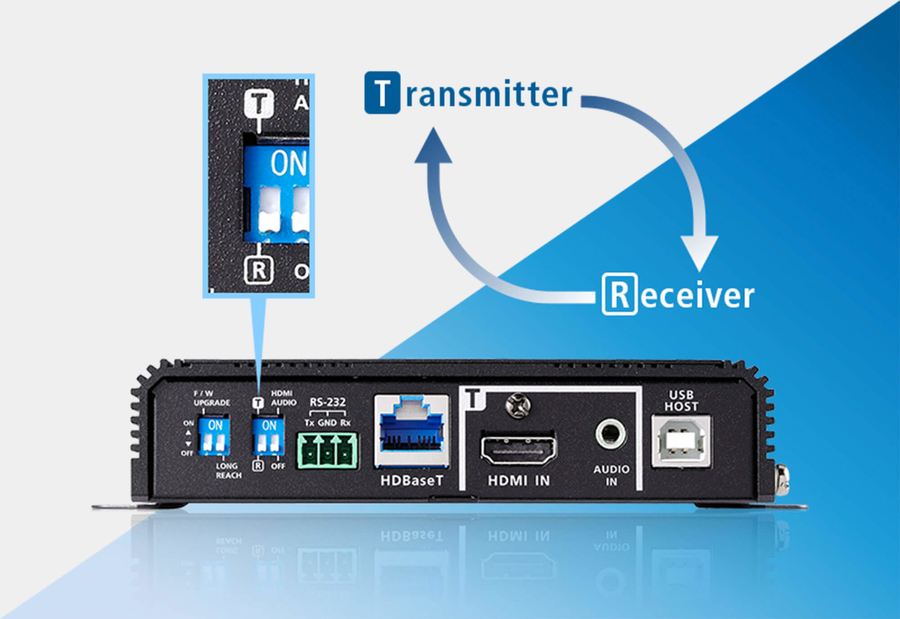

The VE1843 is ATEN’s first video transceiver and integrates the functions of a transmitter and a receiver into one unit. This combination allows users to easily configure the unit to be a transmitter or receiver depending on their AV solution, and to enjoy more flexible deployment and effective use with video matrix switches, video splitters, etc.

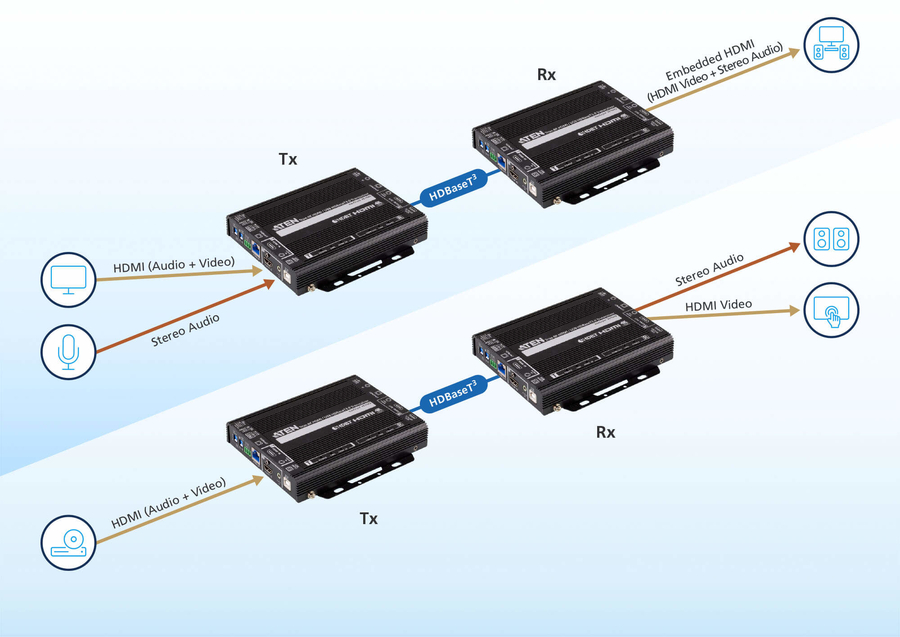

Designed with HDBaseT 3.0 technology, the VE1843 not only extends True 4K uncompressed signals up to 100 m over a single Cat 6a cable (HDBaseT 3 Certified Cat 6a U/FTP cable* / ATEN 2L-2920 Cat 6a cable) with zero latency, but also transmits IR, RS-232, Ethernet, independent audio, and USB signals with the latest HDBaseT standards. For stable HDMI signal transmission, the VE1843 ensures high-quality visuals and reliable extension by supporting HDCP 2.3, 3D, Deep Color, HDR, HDR 10+, and Dolby Vision. In addition, the VE1843 is equipped with HDMI audio embedding / de-embedding functions, enabling users to flexibly adapt suitable audio / video combinations based on different environments. To ensure non-stop operations, the fanless fin heat sink design prevents overheating and thus elevates its reliability.
Empowered by the above benefits, the VE1843 increases the potential of AV applications while also streamlining complex installations. This makes the VE1843 an ideal solution for conference halls, auditoriums, lecture halls, museums, exhibition rooms, and anywhere else that requires high-quality transmission and easy-to-use application. |
|
Features |
|
Type |
AV transmitter & receiver |
|
Maximum resolution |
4096 x 2160 pixels |
|
Cable types supported |
Cat6a |
|
Maximum transfer distance |
5 m |
|
Maximum refresh rate |
60 Hz |
|
Bandwidth |
18 Gbit/s |
|
HDCP |
Yes |
|
Material |
Metal |
|
3D |
Yes |
|
Firmware upgradeable |
Yes |
|
Impedance |
100 Ω |
|
HDCP version |
2.2 |
|
Product colour |
Black |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
RJ-45 input ports |
1 |
|
HDMI in |
1 |
|
Number of HDMI outputs |
1 |
|
USB ports quantity |
2 |
|
USB connector type |
USB Type-A, USB Type-B |
|
Audio input |
1 |
|
Audio output |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (typical) |
6.45 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
171.5 mm |
|
Depth |
150.9 mm |
|
Height |
30 mm |
|
Weight |
640 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
