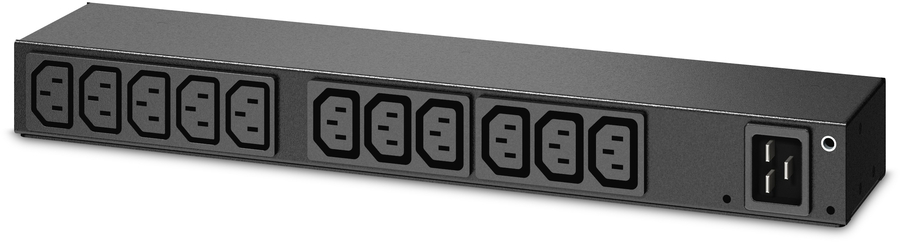

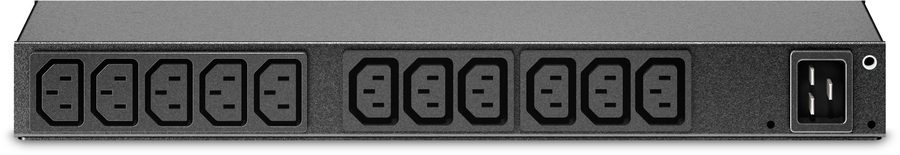

APC Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
|
Regularly: $127.00
On Sale: $121.28
Sale Ends:
September 28th, 2024
Manufacturer:
APC
100-240V, 50/60Hz, 20A, 1U
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
Product # |
Manufacturer # |
UPC # |
Status |
58122264
|
AP6020A
|
731304327806 |
Active
|
Details
General Information |
Summary |
AP6020AFeatures
- Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13 - Reliable rack power distribution - Includes : Installation guide , Safety guide
Marketing Features
Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price. Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Agility
Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of Ownership
Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price. |
Design |
PDU types |
Basic |
Rack capacity |
0U/1U |
Type |
Single-phase |
Mounting |
Horizontal/Vertical |
Product colour |
Black |
Ports & interfaces |
AC outlets quantity |
13 AC outlet(s) |
AC outlet types |
C13 coupler |
Power plug |
C20 coupler |
Output connections |
IEC 320 C13 |
Features |
Certification |
cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
Power |
Nominal input voltage |
100-240 V |
Maximum current |
20 A |
AC input frequency |
50 - 60 Hz |
Load capacity |
3680 VA |
Maximum input current per phase |
16 A |
Maximum total current draw per phase |
16 A |
Maximum power |
3680 W |
Weight & dimensions |
Dimensions (WxDxH) |
44 x 93 x 388 mm |
Weight |
1.5 kg |
Packaging data |
Package dimensions (WxDxH) |
210 x 76 x 436 mm |
Package weight |
2.02 kg |
Operational conditions |
Operating temperature (T-T) |
0 - 50 °C |
Storage temperature (T-T) |
-15 - 60 °C |
Operating relative humidity (H-H) |
5 - 95% |
Storage relative humidity (H-H) |
5 - 95% |
Operating altitude |
0 - 3048 m |
Technical details |
Compliance certificates |
RoHS |
|
