General Information |
|
Summary |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge |
|
Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket AM5 |
|
Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
|
Supported processor sockets |
Socket AM5 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
256 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
Non-ECC |
|
Supported memory clock speeds |
7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
|
Supported memory clock speed (max) |
7600 MHz |
|
Unbuffered memory |
Yes |
|
Maximum internal memory per slot |
64 GB |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
4 |
|
Number of storage drives supported |
7 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 10 |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
Maximum resolution |
4096 x 2160 pixels |
|
HDCP |
Yes |
|
DirectX version |
12.0 |
|
Discrete graphics support |
Yes |
|
Internal I/O |
|
USB 2.0 connectors |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
|
Number of SATA III connectors |
4 |
|
Front panel audio connector |
Yes |
|
Front panel connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of CPU fan connectors |
2 |
|
Number of chassis fan connectors |
3 |
|
EPS power connector (8-pin) |
Yes |
|
TPM connector |
Yes |
|
Serial port headers |
1 |
|
12V power connector |
Yes |
|
Number of water pump connectors |
2 |
|
RGB LED pin header |
Yes |
|
Number of RGB LED pin headers |
4 |
|

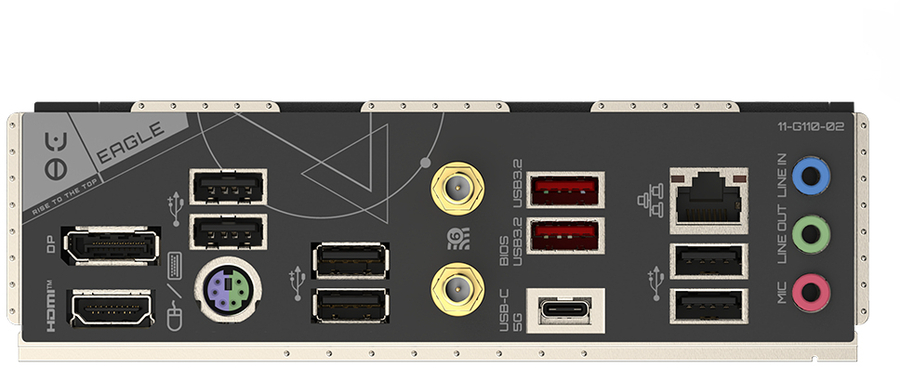

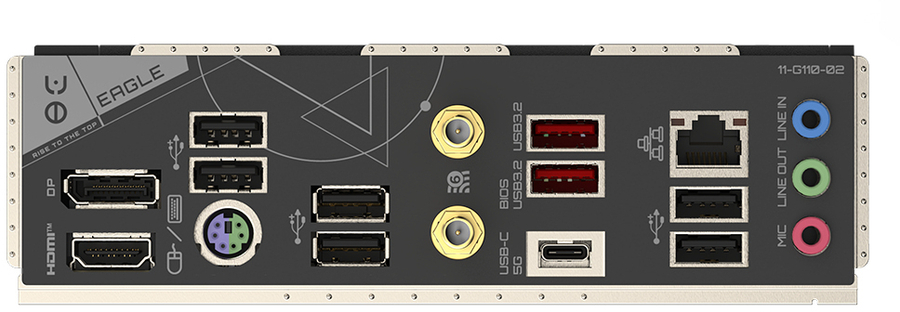

Rear panel I/O ports |
|
USB 2.0 ports quantity |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
PS/2 ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Headphone outputs |
1 |
|
Line-in |
Yes |
|
Microphone in |
Yes |
|
WiFi-AP antenna jack |
2 |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
LAN controller |
Realtek RTL8111H |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
WLAN controller model |
Realtek RTL8852CE |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
ATX |
|
Motherboard chipset family |
AMD |
|
Motherboard chipset |
AMD B650 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC897 |
|
Product colour |
Brown |
|
PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
|
Power source type |
ATX |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Expansion slots |
|
PCI Express x16 (Gen 3.x) slots |
3 |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
Number of M.2 (M) slots |
3 |
|
1st M.2 largest key size |
25110 |
|
1st M.2 highest PCI Express generation |
5.0 |
|
2nd M.2 largest key size |
22110 |
|
2nd M.2 highest PCI Express generation |
4.0 |
|
3rd M.2 largest key size |
22110 |
|
3rd M.2 highest PCI Express generation |
4.0 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
5.0 |
|
Clear CMOS jumper |
Yes |
|
Desktop Management Interface (DMI) version |
2.7 |
|
System Management BIOS (SMBIOS) version |
2.7 |
|
Logistics data |
|
Country of origin |
China |
|
Products per shipping (inner) case |
1 pc(s) |
|
Battery |
|
Battery weight |
3 g |
|
Lithium weight per battery |
0.07 g |
|
Number of battery cells |
1 |
|
Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
|
Battery type |
CR2032 |
|
Packaging data |
|
Package width |
335 mm |
|
Package depth |
270 mm |
|
Package height |
80 mm |
|
Package weight |
1.94 kg |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
244 mm |
|
Height |
35 mm |
|
Packaging content |
|
Batteries included |
Yes |
|
Antenna included |
Yes |
|
Screws included |
Yes |
|
Bundled software |
Norton Internet Security (OEM version)
LAN bandwidth management software |
|
Technical details |
|
Warranty period |
3 year(s) |
