General Information |
|
Summary |
Industrial-Grade Protection Built for Harsh Environments
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management |
|
Management features |
|
Switch type |
Managed |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
4 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Combo SFP ports quantity |
1 |
|
SFP module slots quantity |
1 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Auto-negotiation |
Yes |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
12 Gbit/s |
|
Forwarding rate |
8.93 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
15000 |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black |
|
Wall mountable |
Yes |
|
DIN rail mounting |
Yes |
|
Performance |
|
Fanless |
Yes |
|
Power |
|
Power source |
DC/PoE |
|

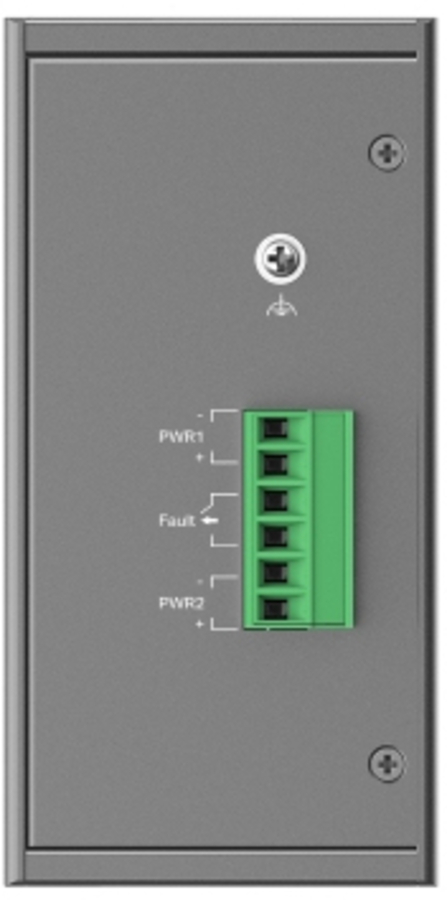

Redundant power supply (RPS) support |
Yes |
|
DC input voltage |
12 - 57 V |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
PoE+, PoE++ (4PPoE) |
|
Power over Ethernet plus (PoE+) ports quantity |
3 |
|
Power over Ethernet 4PPoE (PoE++) ports quantity |
1 |
|
Power over Ethernet (PoE) power per port |
30 W |
|
Total Power over Ethernet (PoE) budget |
120 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
155 mm |
|
Depth |
120 mm |
|
Height |
60 mm |
|
Packaging content |
|
Quick start guide |
Yes |
|
Certificates |
|
Certification |
FCC, CE, RoHS |
