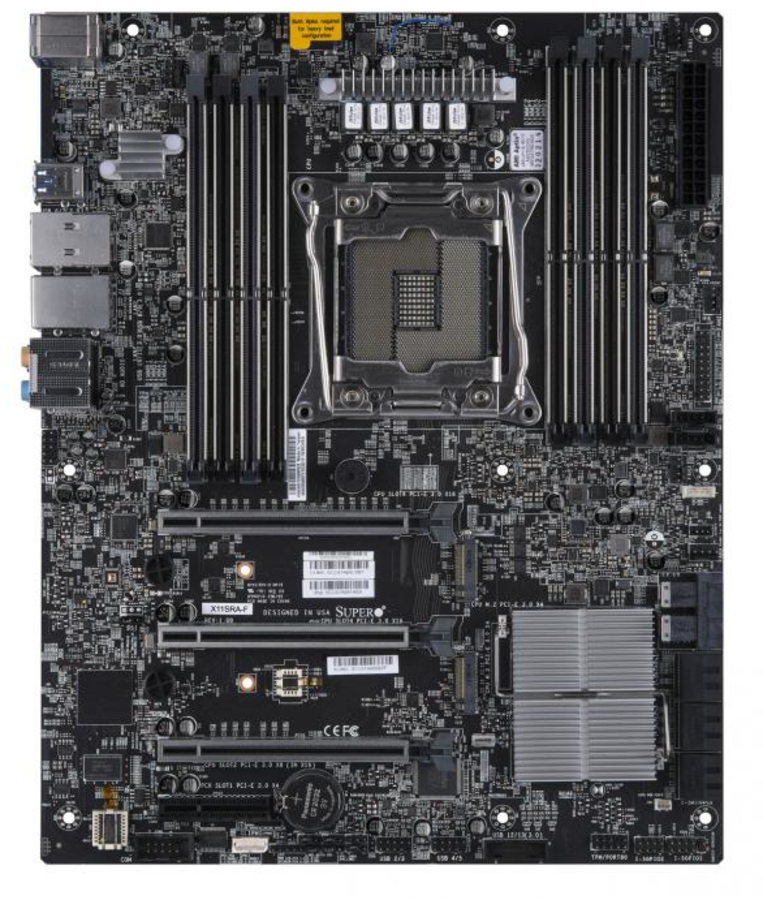

General Information |
|
Summary |
Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
In addition, Supermicro also offers high-performance Embedded motherboards with product life cycles of up to 7 years. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 2066 (Socket R4) |
|
Compatible processor series |
Intel® Xeon® |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Maximum internal memory |
512 GB |
|
Memory voltage |
1.2 V |
|
ECC сompatibility |
ECC |
|
Supported memory clock speeds |
1600,1866,2133,2400,2666 MHz |
|
Maximum RDIMM memory |
256 GB |
|
Storage controllers |
|
Supported storage drive interfaces |
SATA III |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Internal I/O |
|
USB 2.0 connectors |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
2 |
|
Number of SATA III connectors |
6 |
|
Number of chassis fan connectors |
5 |
|
Chassis intrusion connector |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|
Serial port headers |
1 |
|
Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
0 |
|
VGA (D-Sub) ports quantity |
0 |
|
IPMI LAN (RJ-45) port |
Yes |
|
PS/2 ports quantity |
0 |
|
COM ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
LAN controller |
Aquantia AQC108, Intel I219LM |
|
Features |
|
Component for |
Workstation |
|
Motherboard form factor |
ATX |
|
Motherboard chipset |
Intel® C422 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC1220 |
|
PC health monitoring |
Fan, LED, Temperature, Voltage |
|
Watch Dog function |
Yes |
|
Expansion slots |
|
PCI Express x8 (Gen 2.x) slots |
0 |
|
PCI Express x8 (Gen 3.x) slots |
0 |
|
PCI Express x16 (Gen 2.x) slots |
0 |
|
PCI Express x16 (Gen 3.x) slots |
3 |
|
Number of M.2 (M) slots |
2 |
|
BIOS |
|
BIOS type |
UEFI |
|
BIOS memory size |
256 Mbit |
|
Processor special features |
|
Trusted Platform Module (TPM) |
Yes |
|
Operational conditions |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Storage relative humidity (H-H) |
10 - 95% |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Weight & dimensions |
|
Width |
304.8 mm |
|
Depth |
243.8 mm |
|
Packaging content |
|
Bundled software |
AMT, SuperDoctor 5, Watchdog |
|
Other features |
|
PCI Express x4 (Gen 3.x) slots |
3 |
|
Supported DIMM module capacities |
4GB, 8GB, 16GB, 32GB, 64GB |
|
Supported LRDIMM clock speeds |
1600,1866,2133,2400,2666 MHz |
|
Maximum LRDIMM memory |
512 GB |
|
Supported RDIMM clock speeds |
1600,1866,2133,2400,2666 MHz |
|
Audio output |
Y |
|
Number of DIMM slots |
8 |
|
Number of processors supported |
1 |
|
Thermal Design Power (TDP) |
140 W |
|
Technical details |
|
Compliance certificates |
RoHS |
